915 Simplex 24″ x 24″ Grinder Package with M803

Product Details

Our Model 915 is a preassembled grinder pump package that comes with all of the key components required for installation.  It is ideal for those looking to install a job ready sewage ejector system.  Purchasing a job ready package reduces installation errors while minimizing cost.

The Model 915 grinder pump package is designed for burial flush-to-grade.  The access cover is the only part that is visible after installation.

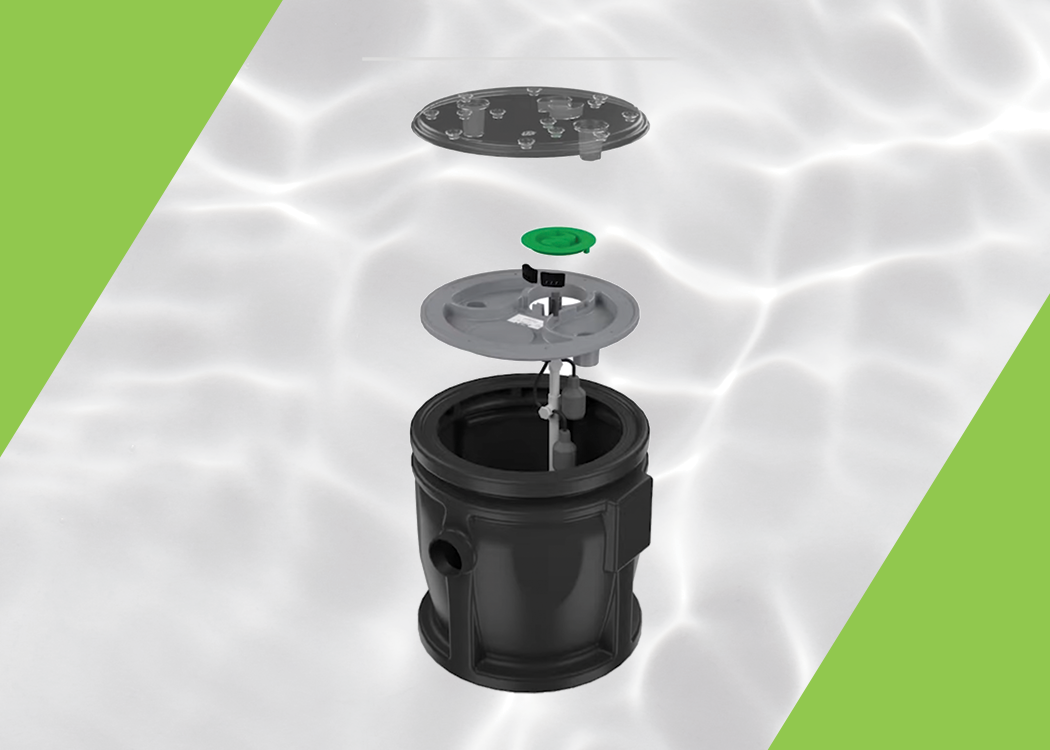

The package comes preassembled in an 24″ x 24″ polyethylene structural foam (PSF) basin.  It includes our Model 803 automatic grinder pump.  The Model 803 is a 1/2 HP grinder pump.  The grinder pump reduces solids to an 1/8″ or less as they pass through the cutter and cutter plate.  This allows for the use of a smaller line size during installation.  This is often necessary in areas with shallow bedrock or hilly terrain.

The basin comes complete with an 1-1/4″ PVC discharge pipe that includes a predrilled 3/16″ weep hole to prevent the pump from becoming airlocked.   The basin’s cover includes a cord seal for the pump’s electrical cord along with a predrilled 2″ vent hole.  Additionally, the cover includes a twist-to-lock observation port for inspections and float access.  The basin also ships with a clear construction cover to protect the basin lid while doing finish work around the basin cover.  The cover is sealed in place prior to shipment.  The pre-plumbed 4″ inlet hub makes for a quick connection to the main sewage line.

Job ready, fast, and easy installation!

Features and Benefits

• The Model 803 is 100% Factory Tested
• The Model 803 grinder pump cuts solids into a slurry using the industry proven "scissor like" Tri-Slice ® cutter technology that includes a rotating cutter cutting against the stationary cutter plate reducing solids down to 1/8"
• The pump includes a powder-coated epoxy finish which provides corrosion-resistance and extends the pump's life in harsh sewage environments
• The pump's 115 V electrical cord seal is sealed in the cover
• Pump switch installed 180° from the 4" inlet to prevent the float from being affected by the inflow of raw sewage
• The pump includes a powder-coated epoxy finish which provides corrosion-resistance and extends the pump's life in harsh sewage environments
• The polyethylene cover comes sealed and bolted down so the system is water and gas tight eliminating the escape of any odor
• The clear construction cover can be removed once the concrete is poured and finished
• 3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
