Aquanot® 508 Backup

Product SKU:

N/A

UPC:

053514348786
3
year limited
warranty
Categories: Tags: , , ,
  • High‑performance 12‑volt DC battery backup system designed to operate when the primary AC sump pump cannot
  • Available in Spin and Fit configurations, offering different levels of monitoring and connectivity
  • Offered as backup‑only systems or ProPak® pre‑piped combination systems with Zoeller primary sump pumps
  • View More Details

The Zoeller AquaNot® 508 battery backup systems provide dependable sump pump protection during power outages and emergency conditions. Available in Spin and Fit configurations, the 508 line offers both backup‑only systems and ProPak® combination systems that pair the backup with Zoeller primary sump pumps. With high‑performance DC pumping, self‑testing controls, and optional Wi‑Fi monitoring, the AquaNot® 508 line delivers flexible, reliable basement flood protection.

Find Nearest Contractor
Find Nearest Distributor
Find Nearest Service Center
3
year limited
warranty

Have a question? Give us a call!

800-928-7867
Aquanot® 508 Backup

The Zoeller AquaNot® 508 battery backup systems provide dependable sump pump protection during power outages and emergency conditions. Available in Spin and Fit configurations, the 508 line offers both backup‑only systems and ProPak® combination systems that pair the backup with Zoeller primary sump pumps. With high‑performance DC pumping, self‑testing controls, and optional Wi‑Fi monitoring, the AquaNot® 508 line delivers flexible, reliable basement flood protection.

Product Details

The Zoeller AquaNot® 508 battery backup system line is engineered to protect basements from flooding when the primary AC sump pump cannot operate due to power failure, mechanical issues, or high‑water events. Using a high‑efficiency 12‑volt DC pump and intelligent controller technology, the AquaNot® 508 provides reliable backup protection across a wide range of residential sump applications.

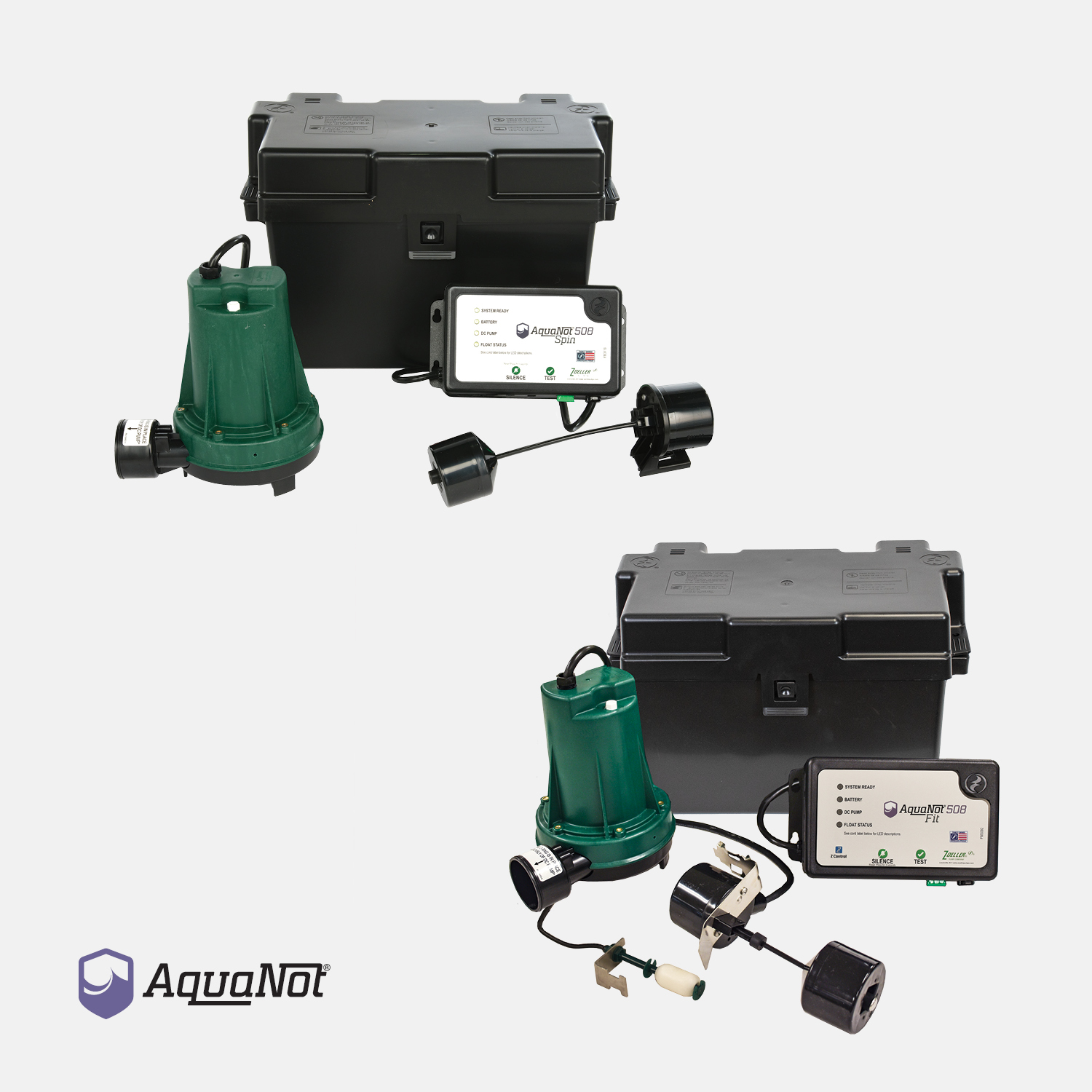

The 508 family includes AquaNot® Spin 508 and AquaNot® Fit 508 systems. Both configurations feature a double‑sealed DC pump capable of delivering approximately 34 GPM at 10 feet of head, along with smart diagnostic logic and self‑testing functionality. The Fit 508 adds built‑in Wi‑Fi and Z‑Control® connectivity, allowing homeowners and contractors to monitor system status, receive alerts, and perform tests remotely.

The AquaNot® 508 is available as a backup‑only system for retrofitting existing sump installations, or as a ProPak® combination system that includes a Zoeller primary sump pump and pre‑piped assembly. ProPak® systems reduce installation time and provide a matched primary and backup solution using proven Zoeller pumps such as the M53®, M63, and M98.

Each AquaNot® 508 system supports long runtime performance, providing up to 5.5 hours of continuous pumping on a fully charged battery or more than 48 hours of protection at a reduced duty cycle. Compatible with maintenance‑free batteries and backed by Zoeller’s diagnostic and monitoring capabilities, the AquaNot® 508 line delivers premium sump pump backup protection with flexible system configurations.

Features and Benefits
  • Includes a double‑sealed, high‑efficiency DC pump delivering approximately 34 GPM at 10’ of head at 12.7 volts
  • Provides up to 5.5 hours of continuous pumping on a fully charged battery, or 48+ hours at a 10% duty cycle
  • Controller automatically tests the pump on an adjustable schedule and monitors system health
  • Supports two independent supervised switches for redundancy rather than relying on a single dual‑float switch
  • Monitors for pump activation, high water, power outage, air‑locked pump, stuck switch, battery condition, and charger faults
  • Battery box accommodates Group 27, 29, or 31 12‑volt deep‑cycle batteries (battery sold separately)
  • Compatible with Zoeller maintenance‑free AGM batteries for simplified ownership and reduced upkeep
  • 100% Factory Tested primary sump pump and battery backup sump pump
  • 3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Product Specifications

Shipping Weight:

N/A

Shipping Dimensions:

Height 11 in   x   Width 20 1/2 in   x   Length 20 in.

Primary Pump:

Backup Only, M53 ProPak, M63 ProPak, M98 ProPak

Z Control Enabled Product:

Yes, No

Charger:

Keeps battery charged, Performs self-testing

Alerts:

Connection fault, Power outage/restored, Pump activation, Pump cycled, Pump fault, Switch fault

Battery Case:

Fits all group size 27, 29 and 31 batteries, Made from non-corrodible polyethylene, Maximum battery dimensions of 13" (330 mm) L x 7-1/2" (191 mm) W x 9-1/2" (241 mm) H, To use multiple batteries, order extra battery case with hookup wire (P/N 10-5184).
