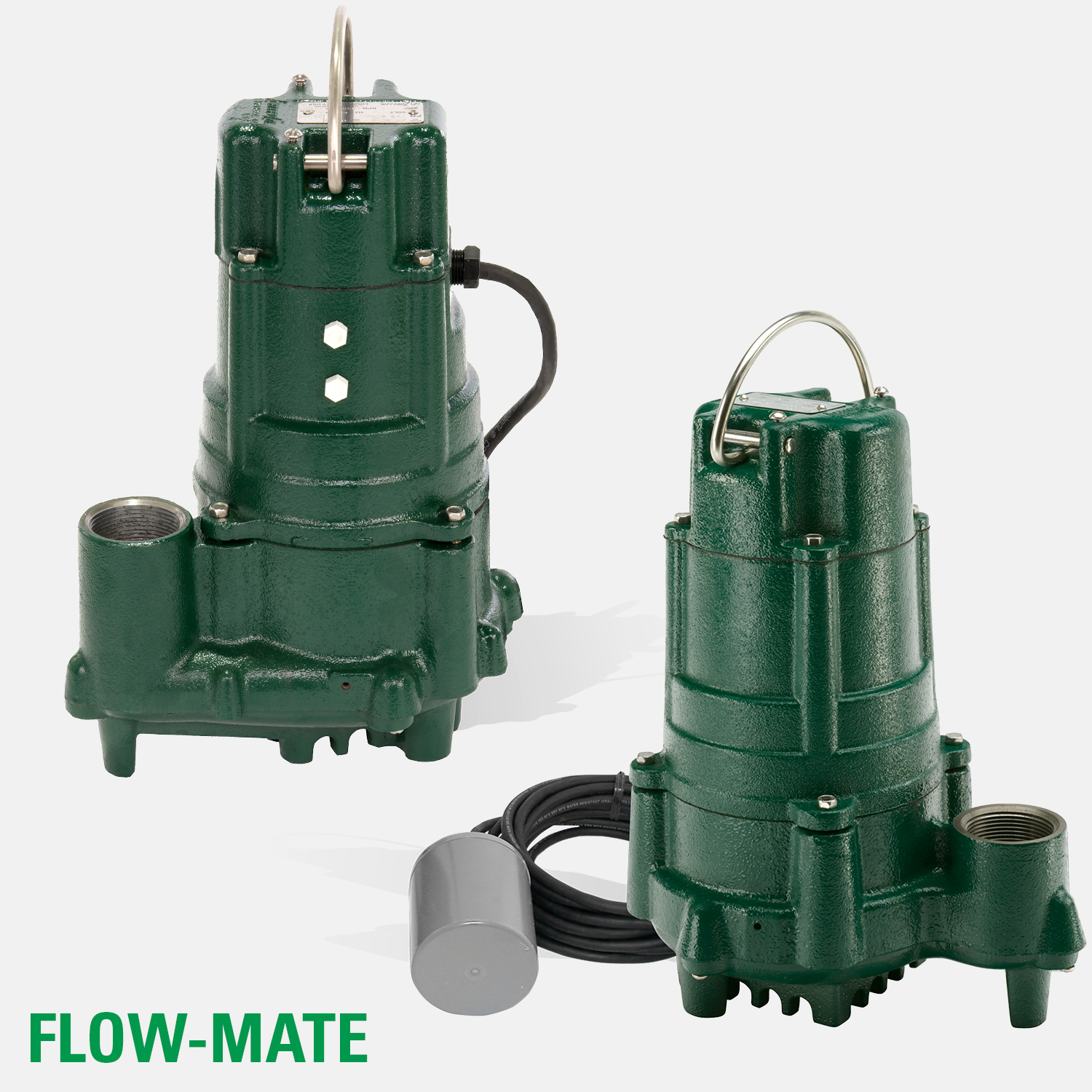

Model 140 Effluent Pump

Product SKU:

N/A

UPC:

053514105860
1
year limited
warranty
Categories: Tags: , , , , , , , , , , ,
  • 115 V or 230 V submersible effluent/dewatering pump for septic, STEP, low-pressure pipe, and dewatering applications
  • 1 HP, oil-filled motor supports efficient heat dissipation during extended use
  • 100% factory tested for dependable performance
  • View More Details

The 1 HP Model 140/4140 submersible effluent pump is designed to remove effluent and unwanted water in septic, low-pressure pipe, STEP, and dewatering applications. Its oil-filled motor, cast iron construction, corrosion-resistant finish, and non-clogging vortex impeller provide the durability and dependability expected from a Zoeller pump. Available in single-seal Model 140 and double-seal Model 4140 configurations, every pump is 100% factory tested to help ensure dependable performance and peace of mind right out of the box.

Find Nearest Contractor
Find Nearest Distributor
Find Nearest Service Center
1
year limited
warranty

Have a question? Give us a call!

800-928-7867
Model 140 Effluent Pump

The 1 HP Model 140/4140 submersible effluent pump is designed to remove effluent and unwanted water in septic, low-pressure pipe, STEP, and dewatering applications. Its oil-filled motor, cast iron construction, corrosion-resistant finish, and non-clogging vortex impeller provide the durability and dependability expected from a Zoeller pump. Available in single-seal Model 140 and double-seal Model 4140 configurations, every pump is 100% factory tested to help ensure dependable performance and peace of mind right out of the box.

Product Details

The Zoeller Model 140/4140 Series submersible effluent pumps are designed for demanding septic effluent and dewatering applications, including septic tanks, low-pressure pipe systems, and enhanced-flow STEP systems. The 1 HP, oil-filled motor helps dissipate heat during extended operation, while the durable cast iron construction and powder-coated epoxy finish provide corrosion resistance in challenging environments. A non-clogging, engineered thermoplastic vortex impeller provides reliable pumping performance and passes 1/2-inch spherical solids.

Available in automatic and nonautomatic configurations, the 140/4140 Series offers options for 115 V or 230 V, single-phase systems. Model 140 pumps use a single mechanical seal, while Model 4140 pumps add a second seal for enhanced motor protection. Stainless steel hardware, automatic-reset thermal overload protection, and carbon-and-ceramic mechanical seals support dependable operation. Every pump is 100% factory tested to help ensure reliable performance right out of the box.
Features and Benefits
  • Oil-filled motor: Oil-filled motor optimizes heat dissipation, helping prevent overheating during extended use
  • Multiple operating configurations: Available in automatic (piggyback) and nonautomatic configurations to accommodate different system controls and installation requirements
  • Non-clogging vortex impeller: Engineered thermoplastic vortex impeller allows the passage of 1/2-inch spherical solids, helping reduce clogging and support reliable operation
  • Durable cast iron construction: Cast iron cap, motor housing, pump housing, and base provide strength for demanding effluent and dewatering applications
  • Corrosion-resistant finish: Powder-coated epoxy finish helps resist corrosion and extends casting life in harsh environments
  • Stainless steel hardware: Stainless steel exterior hardware helps prevent rust and corrosion for long-lasting performance.
  • Automatic motor protection: Automatic-reset thermal overload protection helps protect the motor from damaging operating temperatures
  • Double-seal option: Model 4140 features a double seal for extra motor protection. If the lower seal fails, the upper seal provides a second line of defense against pump failure
  • 100% factory tested: Every pump is factory tested to help ensure reliable performance in challenging applications
Product Specifications

Shipping Weight:

N/A

Shipping Dimensions:

.

Horsepower:

1

Voltage:

115, 230

Phase:

1

Shaft Seal:

Single, Double

Operation:

Automatic, Nonautomatic

Switch:

Piggyback, None

AMP:

6.0 – 12.0

Hertz:

60

RPM:

3450

Discharge:

1-1/2" NPT

Solids Handling:

1/2" (12 mm) spherical solids

Impeller Material:

Engineered Plastic

Impeller Type:

Vortex

Cord Length:

20' (6 m), 35' (10.67 m), 50' (15.24 m)
