Model 57 Cast Iron Sump Pump

Product SKU:

N/A

UPC:

053514024055
3
year limited
warranty
Categories: Tags: , , , , , , ,
  • Available in multiple voltages and cord lengths, the Model 53® is a submersible sump pump designed for residential and light commercial applications.
  • Features a 3/10 HP motor with oil-filled cooling for optimal heat dissipation and extended performance.
  • 100% factory tested for quality and reliability.
  • View More Details

The Model 57 delivers dependable sump performance with an all cast‑iron motor housing, base, and impeller for enhanced durability and long service life. With a powerful 3/10 HP motor and non‑clogging vortex impeller, it provides reliable flow and consistent protection in demanding residential and light commercial applications. Backed by a 3-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

Find Nearest Contractor
Find Nearest Distributor
Find Nearest Service Center
Find Service Parts
3
year limited
warranty

Have a question? Give us a call!

800-928-7867
Model 57 Cast Iron Sump Pump

The Model 57 delivers dependable sump performance with an all cast‑iron motor housing, base, and impeller for enhanced durability and long service life. With a powerful 3/10 HP motor and non‑clogging vortex impeller, it provides reliable flow and consistent protection in demanding residential and light commercial applications. Backed by a 3-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

Product Details

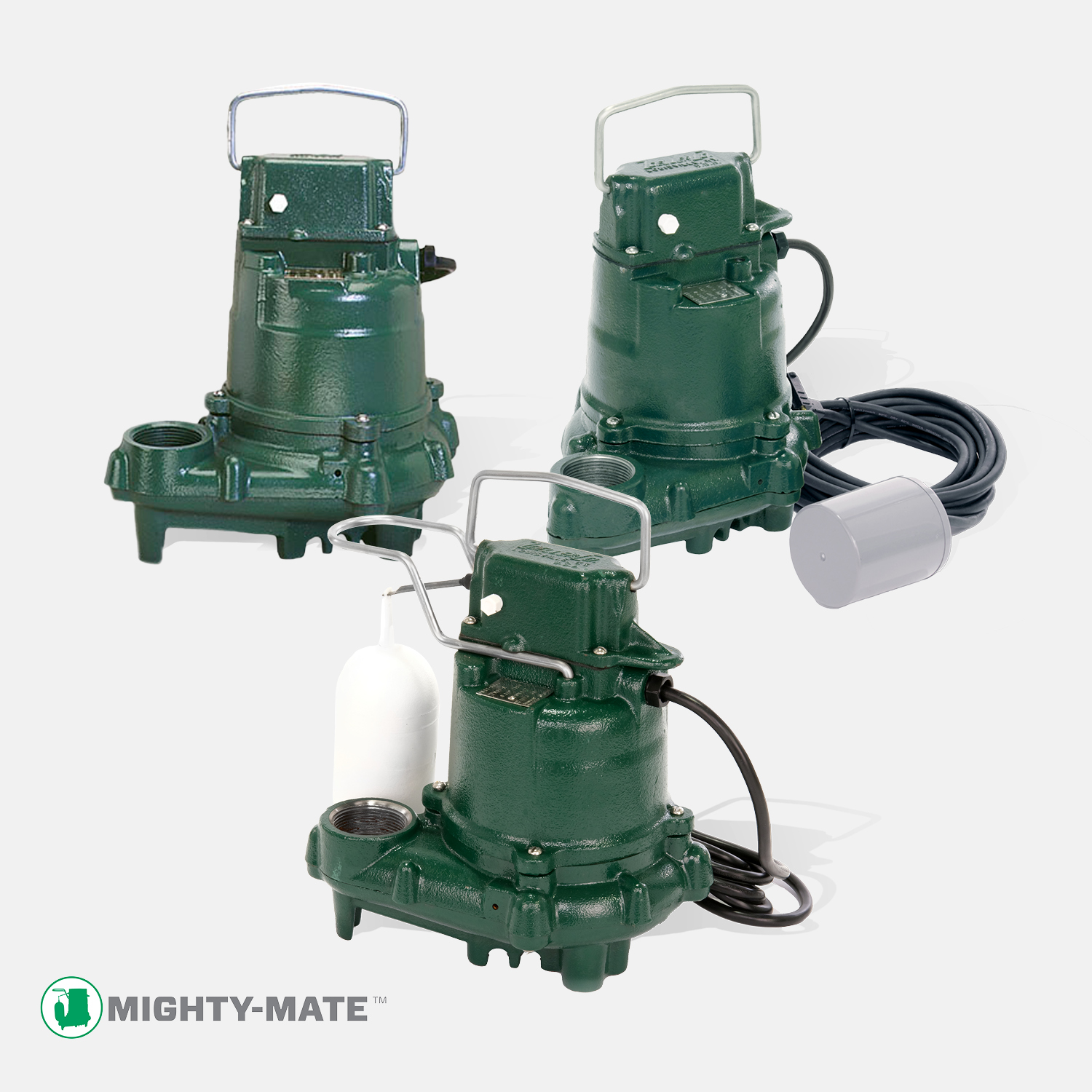

The Model 57 is a rugged, cast‑iron submersible sump pump engineered for long‑term reliability in both residential and light commercial installations. Built on the proven Mighty‑Mate® platform, the Model 57 features an upgraded cast‑iron base and impeller, giving it added durability over standard configurations and making it an excellent choice for demanding environments.

Powered by a 3/10 HP shaded‑pole motor with oil‑filled cooling and thermal overload protection, this pump is designed for continuous, worry‑free operation. Its non‑clogging vortex impeller handles up to 1/2‑inch spherical solids, ensuring dependable performance even when debris is present.

Available in both automatic and non‑automatic versions, the Model 57 adapts easily to varied installation needs. As part of Zoeller’s commitment to quality, every unit is 100% factory tested for performance and reliability, delivering up to 19.25 feet of head and flow rates up to 43 gallons per minute—a proven combination trusted by installers and homeowners alike.

When you need a sump pump built to last, the Model 57 delivers Zoeller’s signature performance—Trusted. Tested. Tough.®

Features and Benefits
  • Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
  • Pump Type Options: Automatic: Includes a preset on/off float switch for consistent runtime. Nonautomatic: Requires a piggyback float switch or control panel for on/off level control.
  • Cast iron vortex impeller to allow free passage of solids which prevents clogging and lessens downtime
  • Float Guard: Protects the float mechanism from interference (if applicable)
  • Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times (applicable on M and D model pumps)
  • Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
  • Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion over the life of the pump
  • 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
  • 3-year limited warranty: This model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Product Specifications

Shipping Weight:

N/A

Shipping Dimensions:

Height 10 1/4 in   x   Width 7 3/4 in   x   Length 10 1/4 in.

Horsepower:

0.30

Voltage:

115, 230

Phase:

1

Operation:

Automatic, Nonautomatic

Switch:

Snap-Action, Piggyback, None

Hertz:

60

RPM:

1550

Discharge:

1-1/2" NPT

Solids Handling:

1/2" (12 mm) spherical solids

On/Off Points:

7-1/4" (18.4 cm) / 3" (7.6 cm)

Impeller Type:

Vortex

Cord Length:

9’ (3 m), 15' (5 m), 25' (7.62 m), 35' (10.67 m)
