Model 942 Oil Guard® Separator

Product SKU:

N/A

UPC:

053514546779
1
year limited
warranty
Categories: Tags: , , ,
  • Single-phase elevator sump separation system available in 115, 200-208, and 230 V configurations
  • Available with 0.5 to 1.5 HP, oil-filled submersible pump configurations
  • Every included pump is 100% factory tested
  • View More Details

The Model 942 Oil Guard® Separator System is designed for hydraulic elevator sumps that require the controlled removal of both water and oil. This complete single-pump system automatically directs water to the normal discharge area and diverts detected oil to a separate containment tank. Available with 0.5 to 1.5 HP pumps and multiple single-phase voltage options, the system features durable cast iron construction, an oil-filled motor, integrated controls, and 100% factory-tested pump performance

Find Nearest Contractor
Find Nearest Distributor
Find Nearest Service Center
1
year limited
warranty

Have a question? Give us a call!

800-928-7867
Model 942 Oil Guard® Separator

The Model 942 Oil Guard® Separator System is designed for hydraulic elevator sumps that require the controlled removal of both water and oil. This complete single-pump system automatically directs water to the normal discharge area and diverts detected oil to a separate containment tank. Available with 0.5 to 1.5 HP pumps and multiple single-phase voltage options, the system features durable cast iron construction, an oil-filled motor, integrated controls, and 100% factory-tested pump performance

Product Details

The Model 942 Oil Guard® Separator System is a complete single-pump solution for hydraulic elevator sump applications. During normal operation, the system removes water to the designated discharge area. When oil is detected, the integrated controls operate dedicated solenoid valves to divert the oil to a separate containment tank, helping prevent contamination of the waste stream. The system is designed to support compliance with ASME A17.1 and applicable local elevator and environmental codes.

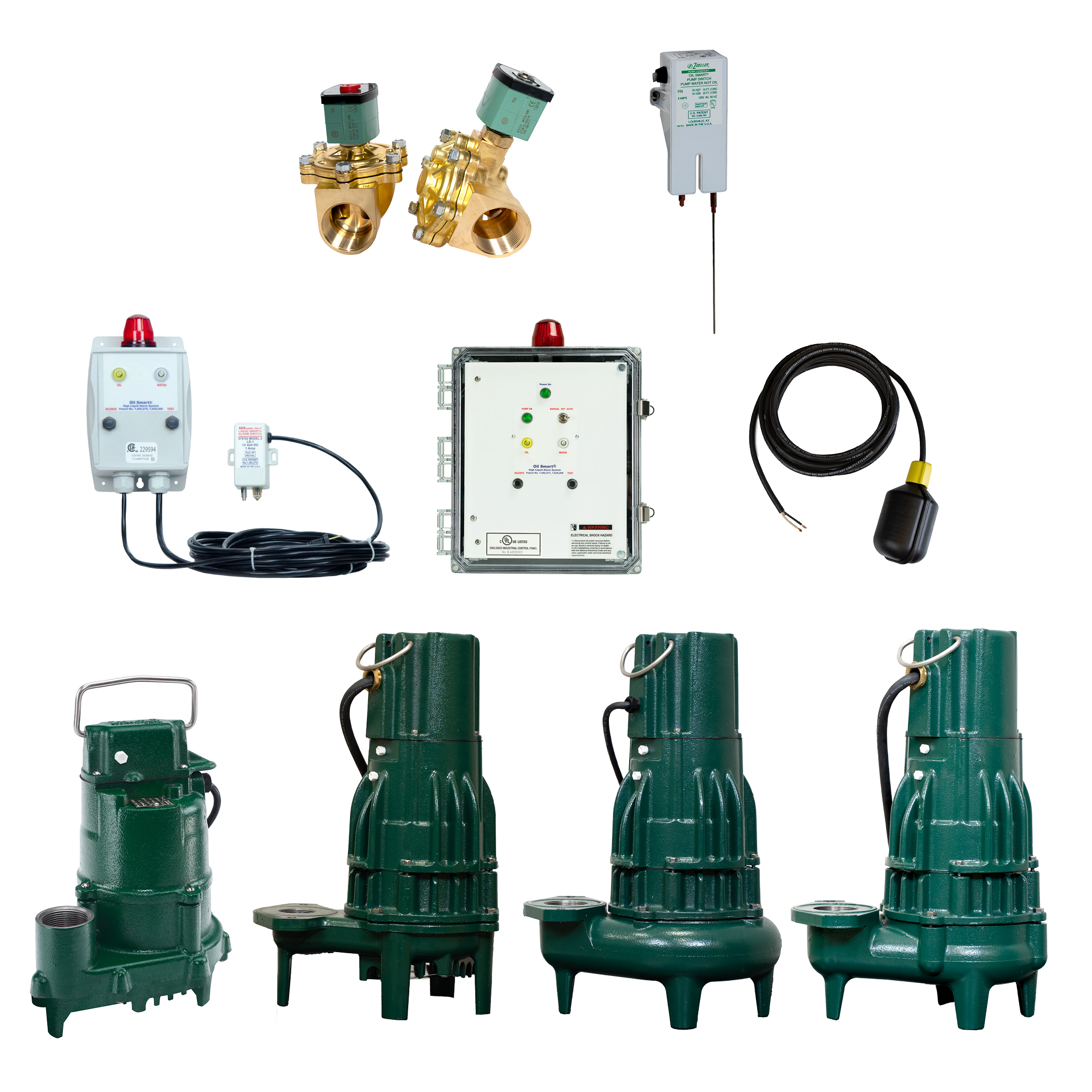

The Model 942 combines a durable cast iron submersible pump with a Liquid Smart® control panel, Oil Smart® containment-tank alarm, and normally open and normally closed solenoid valves. Available pump configurations range from 0.5 to 1.5 HP and 115 to 230 V, single phase. The oil-filled motor housing optimizes heat dissipation for dependable operation, and every pump is 100% factory tested.





Features and Benefits
  • Oil-filled motor: Oil-filled motor optimizes heat dissipation, helping prevent overheating during extended use
  • Automatic liquid separation: Integrated oil-sensing controls automatically direct water to the normal discharge area and divert detected oil to a separate containment area
  • Single-pump system: One submersible pump manages both water and oil removal, simplifying the overall elevator sump system
  • Dedicated solenoid valves: Normally open and normally closed valves control the flow path based on the liquid detected by the system
  • Integrated control panel: The Liquid Smart® control panel provides pump controls, operating-status lights, oil and water indicators, a red alarm beacon, and alarm test and silence controls
  • Containment-tank protection: The Oil Smart® containment-tank alarm detects a high oil level and can shut down the pump to help prevent overfilling
  • Durable construction: Cast iron pump components, stainless steel hardware, and an epoxy-coated finish provide durability for demanding elevator sump applications
  • Factory tested: Every pump used with the Model 942 system is 100% factory tested
  • 1-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Product Specifications

Voltage:

115, 200-208, 230

Phase:

1

Primary Pump:

152, 153, 161, 284, 292, 294

Cord Length:

25' (7.62 m)
