Product Details

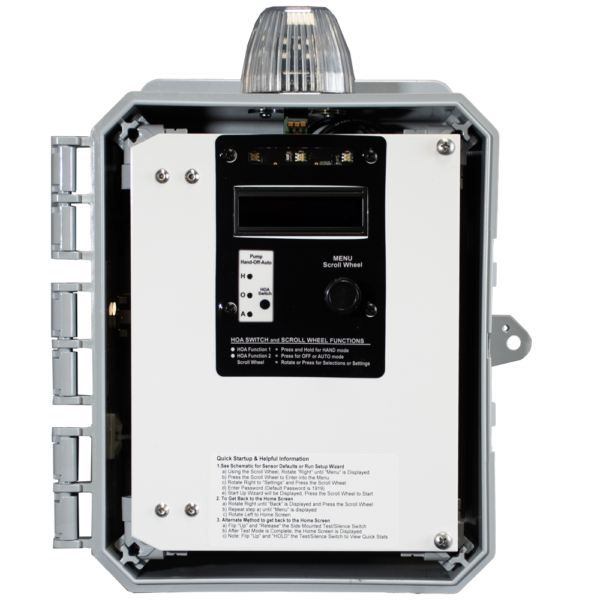

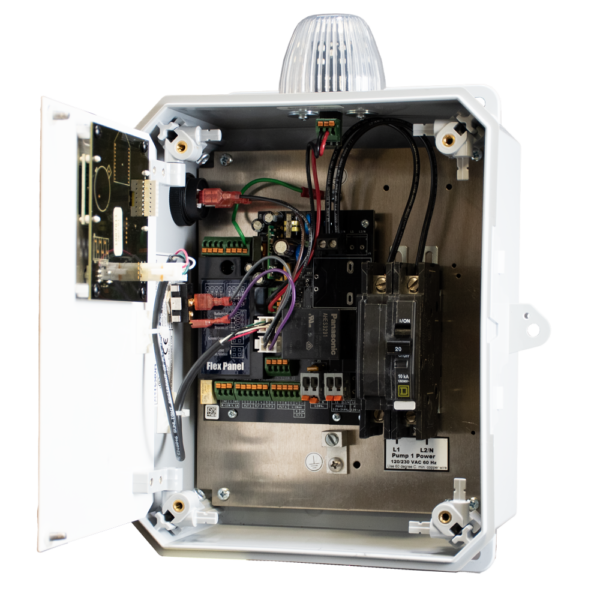

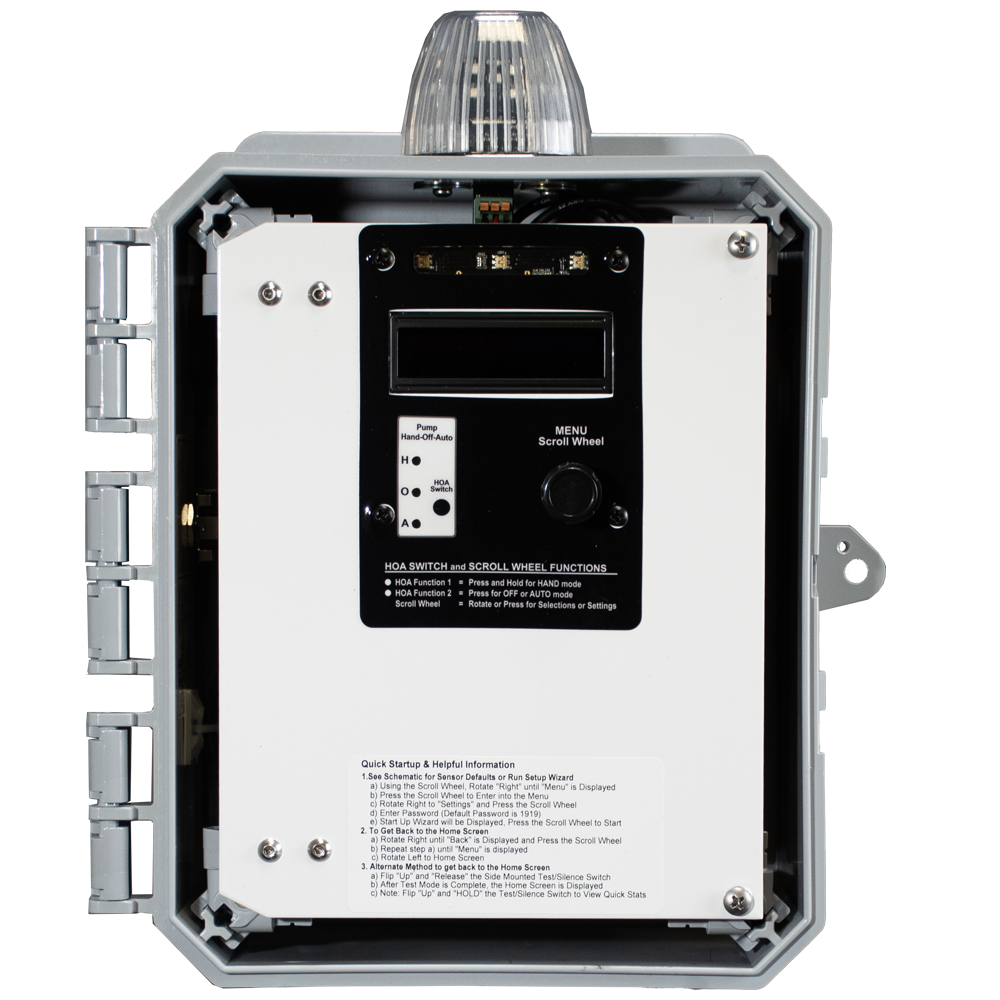

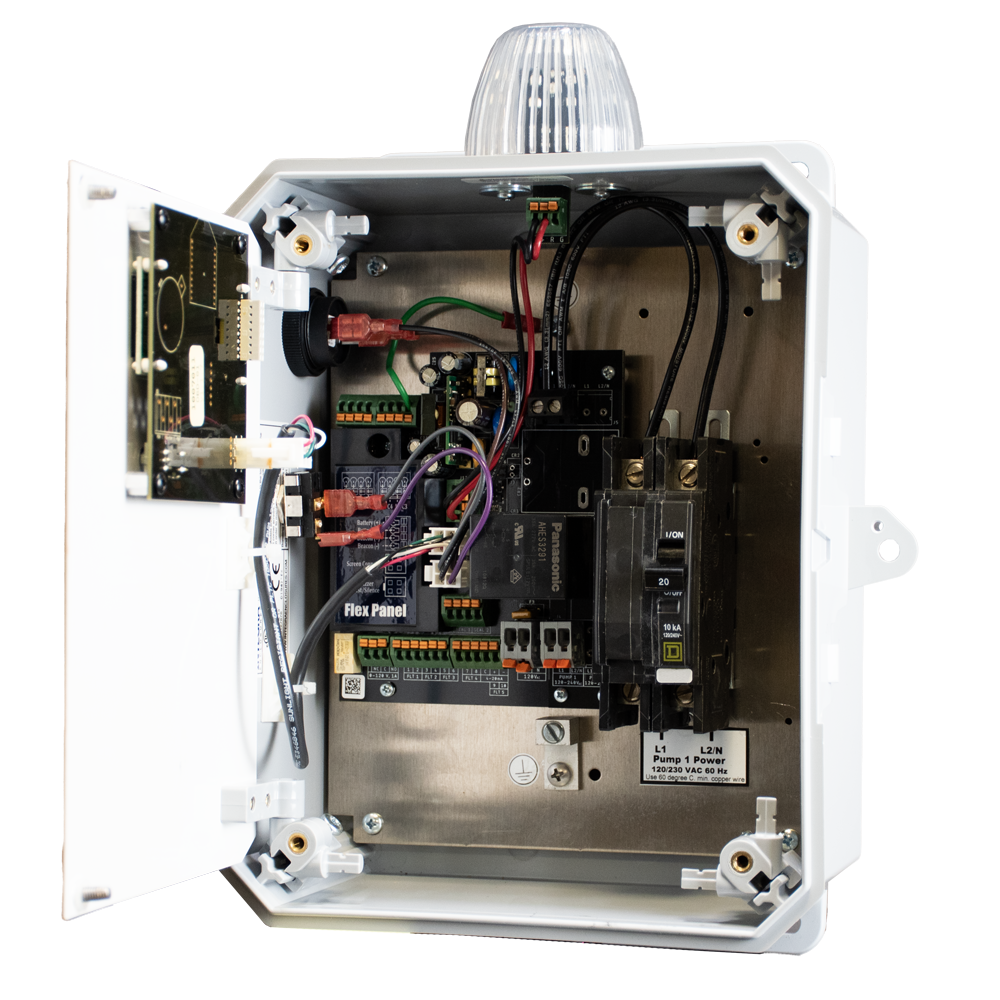

Our Simplex time dose panel is a new addition to our control panel line. It is single phase 115/208/240V, simplex, with LEDs, buzzer, globe, dry contacts, 0-15 amps and timer functions. The enclosure is NEMA 4X rated, opaque door, and includes a cycle counter and elapsed time meter. It can be configured to control and monitor one pump and five sensor inputs, three or four float control with an auxiliary alarm input on input 5. The panel can be configured for demand dose or time dose control. An auxiliary dry contact is also included for interfacing to remote alarms. Floats are purchased separately.
