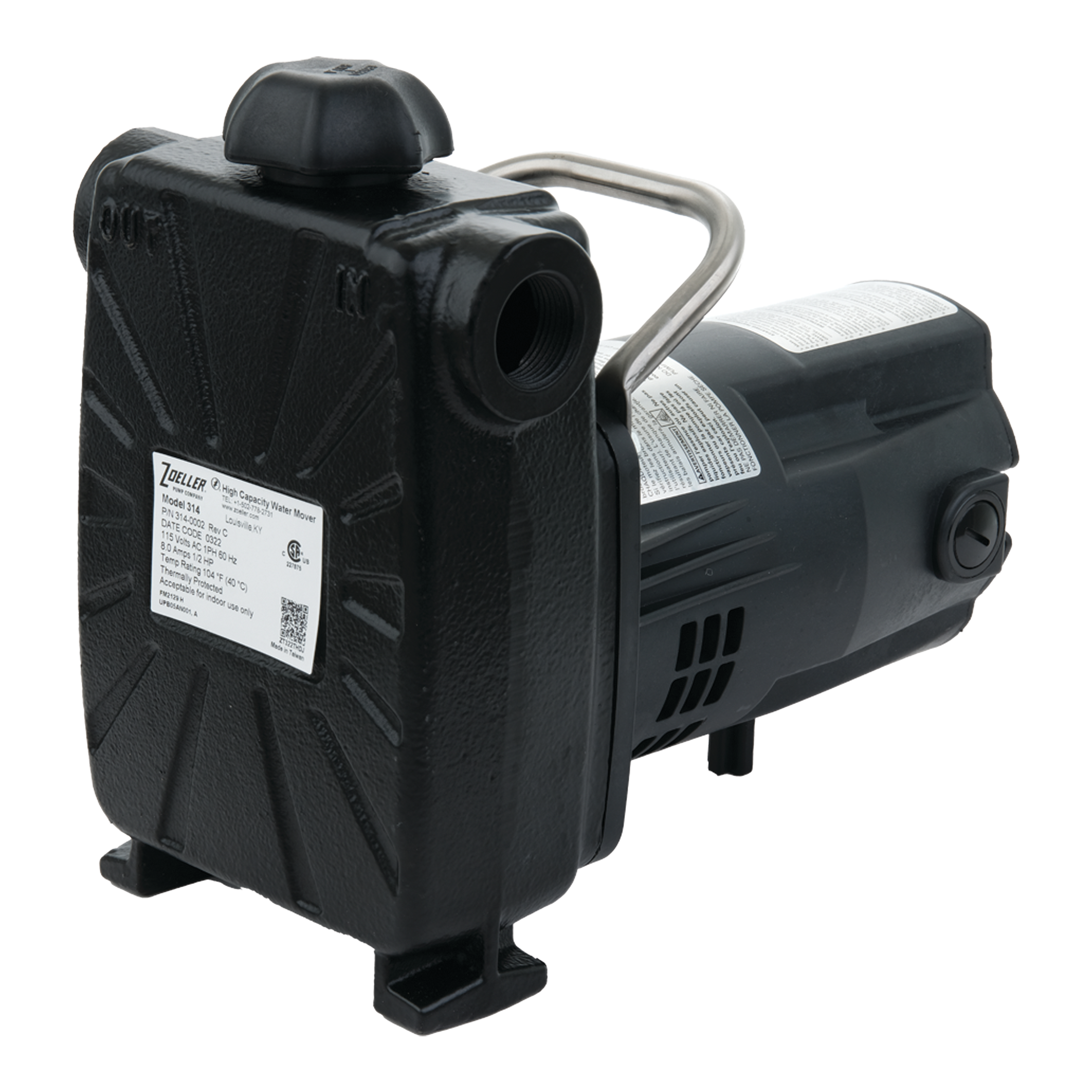

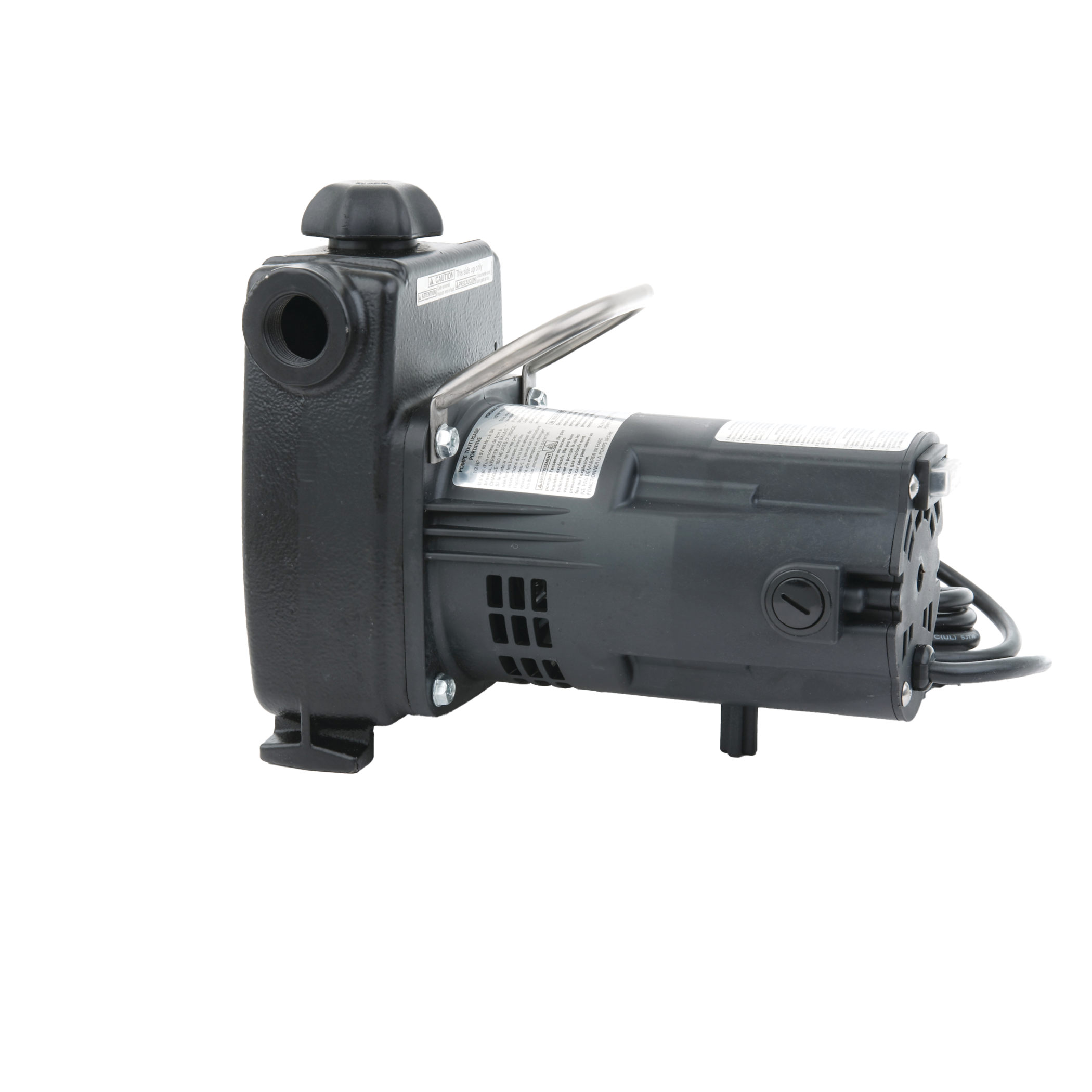

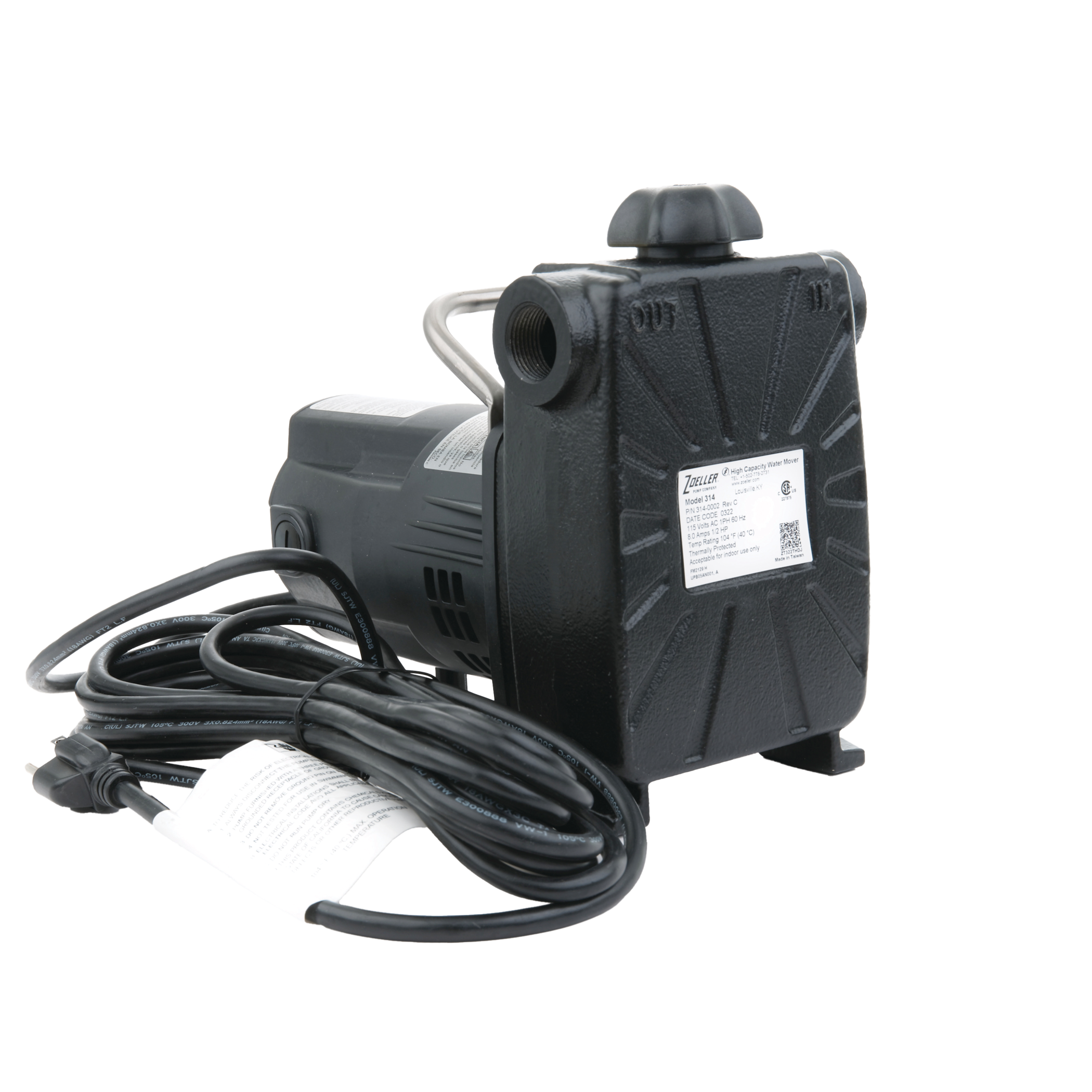

Learn MoreThe Model 314 nonautomatic Transfer Pump is designed as our most powerful portable dewatering pump, generating almost 50 PSI and more than 1,400 gallons per hour in pumping capacity. It is a 1/2 HP, 115V pump making it a useful tool to keep on the shelf in the garage or in the back of the job site pickup. There is a reason it has earned the nickname, “The Water Mover.”
Product SKU:
UPC:
Have a question? Give us a call!
800-928-7867
The Model 314 nonautomatic Transfer Pump is designed as our most powerful portable dewatering pump, generating almost 50 PSI and more than 1,400 gallons per hour in pumping capacity. It is a 1/2 HP, 115V pump making it a useful tool to keep on the shelf in the garage or in the back of the job site pickup. There is a reason it has earned the nickname, “The Water Mover.”
The Model 314 Transfer Pump is our most powerful portable transfer pump. It generates almost 50 PSI and more than 1,400 gallons per hour in pumping capacity. This is the reason it has earned the nickname, “The Water Mover.”

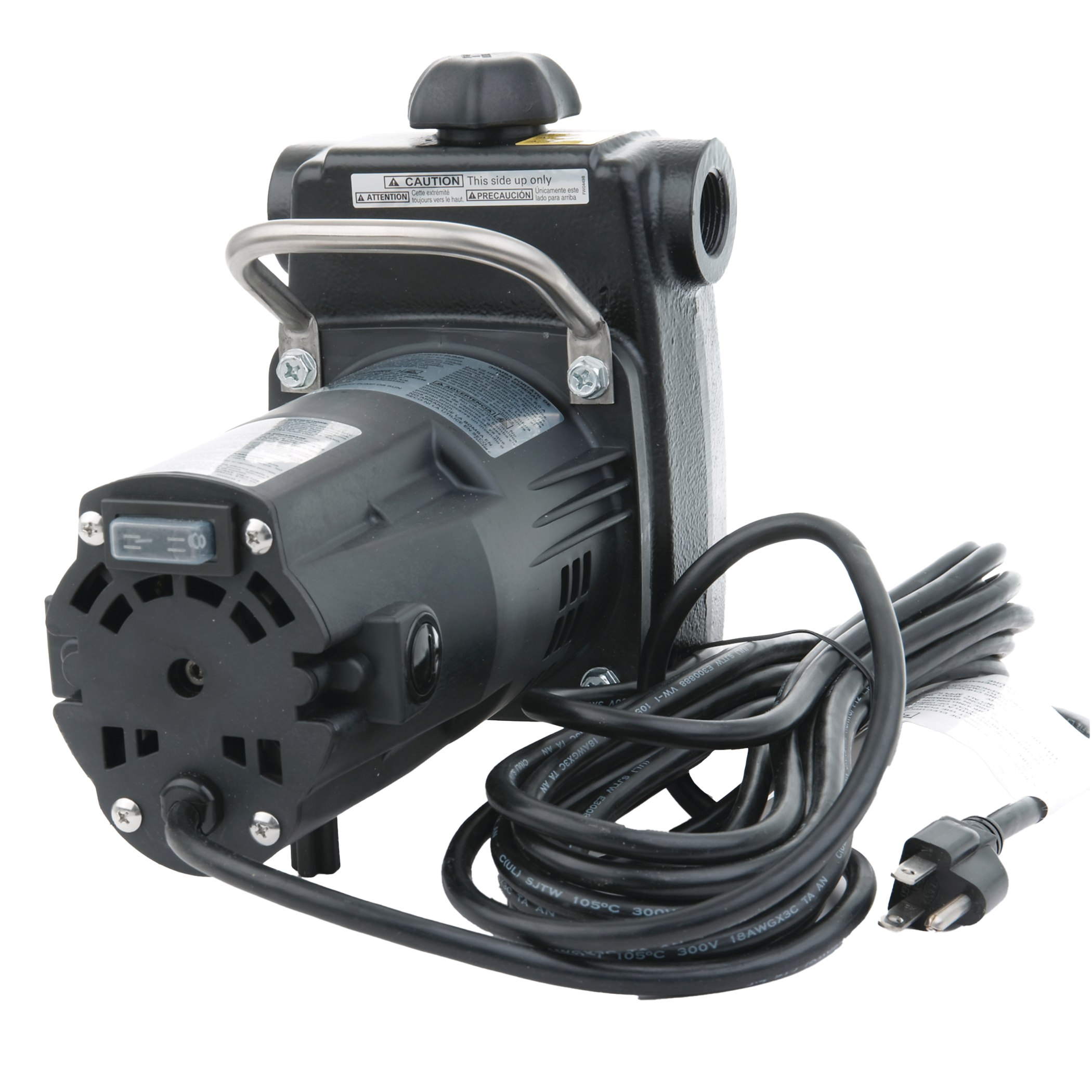

The Model 314’s stainless steel lifting handle makes it easy to transport. This is a handy feature since it is often moved from job-to-job. The threaded inlet and outlet on the pump make hose connections quick and easy, and because they’re brass fittings, there is no reason to worry that the threads will become damaged from repeated use.
The durable cast iron pump housing and easily serviced brush motor ensure trouble-free operation. Like many of our pumps, the engineered plastic impeller’s smooth surface allows water to flow through the pump with maximum efficiency. For added convenience, an over-sized priming cap is included. No tools are required to prime the pump.
We included a 20′ power cord on this pump. We know that when you need to get the pump going, dealing with an extension cord is an added hassle. Our goal was to build in all of the critical features plus a few more that you might want in a high capacity, dependable, transfer pump.
Shipping Weight:
17 lbs
Shipping Dimensions:
Height 11 1/2 in x Width 7 in x Length 9 1/2 in.
Horsepower:
1/2
Voltage:
115
Phase:
1
Hertz:
60
Discharge:
3/4" NPT brass or standard garden hose
Impeller Material:
Engineered Plastic
Cord Length:
20' (6 m)
