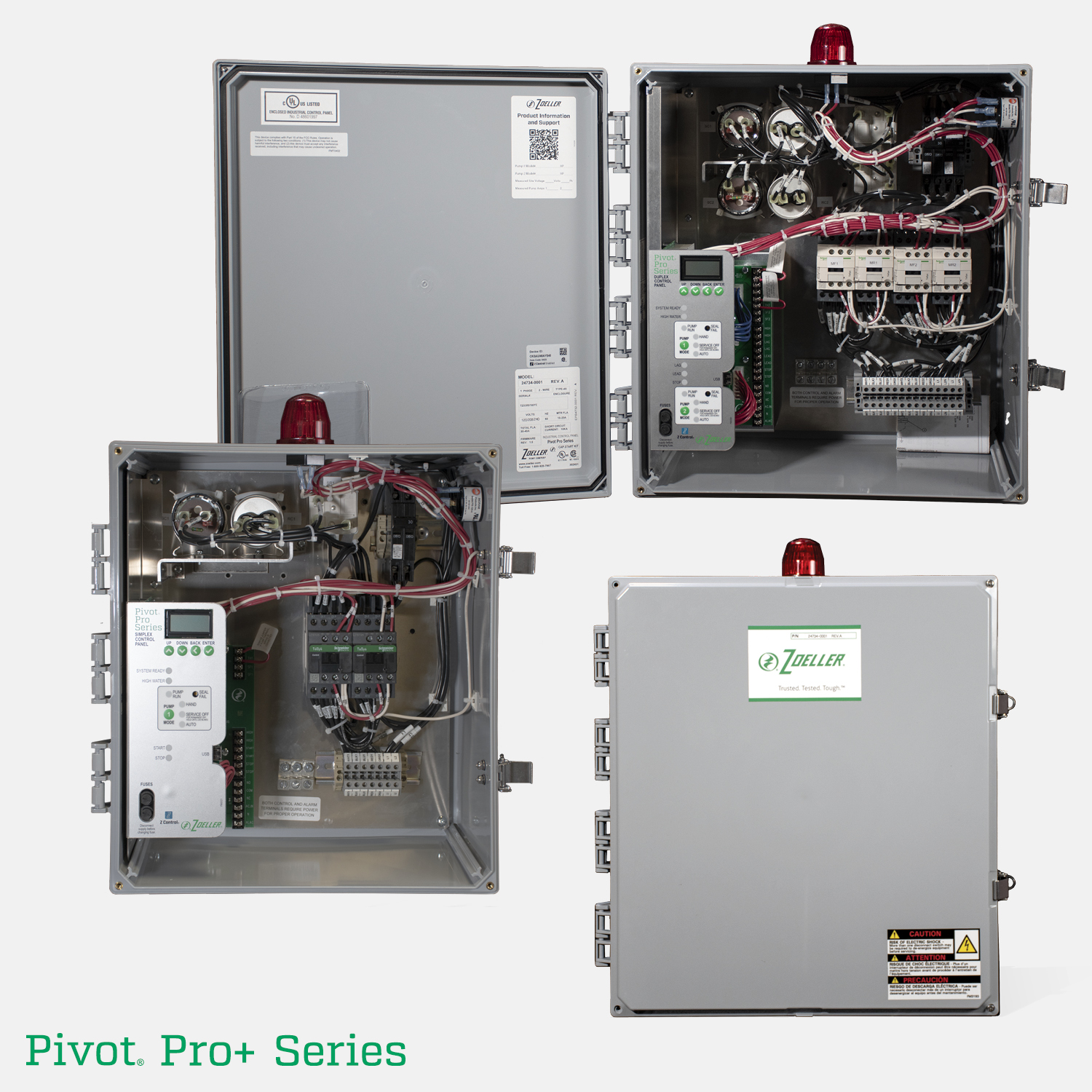

Pivot Pro+ Control Panel

Product SKU:

N/A

UPC:

053514442392
5
year limited
warranty
Categories: Tags: , , ,
  • Available in simplex and duplex configurations with expanded hardware and control options
  • Supports start kits, reversing functionality, and additional panel features not available on standard Pivot® Pro models
  • Built on the Pivot® Pro platform with advanced diagnostics, LCD interface, and Z Control® connectivity
  • View More Details

The Zoeller® Pivot® Pro+ Control Panel is a premium simplex and duplex control solution designed for advanced wastewater applications. Built on the Pivot® Pro platform, Pivot® Pro+ panels support additional hardware options such as start kits and reversing controls, delivering maximum flexibility, diagnostics, and remote monitoring capability.

Find Nearest Contractor
Find Nearest Distributor
Find Nearest Service Center
5
year limited
warranty

Have a question? Give us a call!

800-928-7867
Pivot Pro+ Control Panel

The Zoeller® Pivot® Pro+ Control Panel is a premium simplex and duplex control solution designed for advanced wastewater applications. Built on the Pivot® Pro platform, Pivot® Pro+ panels support additional hardware options such as start kits and reversing controls, delivering maximum flexibility, diagnostics, and remote monitoring capability.

Product Details

The Zoeller® Pivot® Pro+ Control Panel represents the most advanced offering within the Pivot® family, designed for applications that require enhanced control functionality beyond the standard Pivot® Pro platform. Available in simplex and duplex configurations, Pivot® Pro+ panels are factory‑built to support start kits, reversing pump operation, and other advanced control requirements.

At the core of the Pivot® Pro+ is the same LCD‑based user interface and smart control logic found in the Pivot® Pro, allowing users to configure system behavior, review pump run times, and monitor alarms directly at the panel. Smart float logic helps maintain system operation during abnormal float conditions, while configurable lead/lag control supports balanced pump runtime in duplex installations.

Pivot® Pro+ panels are commonly paired with reversing grinder pumps or single‑phase start‑kit applications, where additional internal components are required. To accommodate this hardware, the panel is housed in a larger NEMA 4X enclosure, providing increased space for components while maintaining environmental protection and service accessibility.

When connected to the Z Control® Gateway, Pivot® Pro+ panels offer remote system visibility, alert notifications, and configuration access, helping reduce unnecessary site visits and improve response time to system events. Backed by Zoeller’s 5‑year limited warranty, the Pivot® Pro+ Control Panel delivers maximum capability and flexibility for demanding wastewater control applications.

Features and Benefits
  • Designed for single‑pump (simplex) and dual‑pump (duplex) applications across sewage, effluent, and grinder systems
  • Pivot® Pro+ panels are factory‑configured to include start kits, reversing controls, or other advanced hardware as required by the application
  • Full‑menu LCD display allows users to configure settings, review alarms, and access pump run data without opening the enclosure
  • Selectable Smart or Standard float logic helps keep pumps running even if abnormal float behavior is detected
  • Supports configurable pump alternation, lead/lag selection, and runtime balancing in duplex systems
  • Provides visual and audible alarms for high water, continuous run, seal fail, thermal trip, and other system conditions (when equipped)
  • Includes a data port for Z Control® Gateway connection, allowing remote monitoring, alert notifications, and configuration changes
  • Housed in an expanded NEMA 4X enclosure to accommodate additional components while maintaining ample room for field wiring
  • Backed by Zoeller’s 5‑year limited warranty, reflecting confidence in long‑term reliability
Product Specifications

Shipping Weight:

25 lbs

Shipping Dimensions:

Height 27 in   x   Width 16 in   x   Length 25 in.

Panel Type:

Simplex, Duplex

Enclosure:

NEMA 4X

Voltage:

200/230, 200/230/460, 230, 575

Phase:

1, 3

Full Load Amp:

4.0 – 6.3, 6.0 -10.0, 9.0 – 14.0, 13.0 – 18.0, 17.0 – 23.0, 20.0 – 25.0, 24.0 – 32.0, 30.0 – 40.0, 0 – 7, 0 – 20, 7 – 15, 15 – 20, 20 – 30

Start Kit:

Yes, No

Reversing:

No, Yes

Start Kit Pump:

E611/621/6120/6121, E6111/E7110/E7111, E6220, E6221, E631/6122, E641/6123, E651/6124, E820/7010, 840/7011, 841/7013, None
