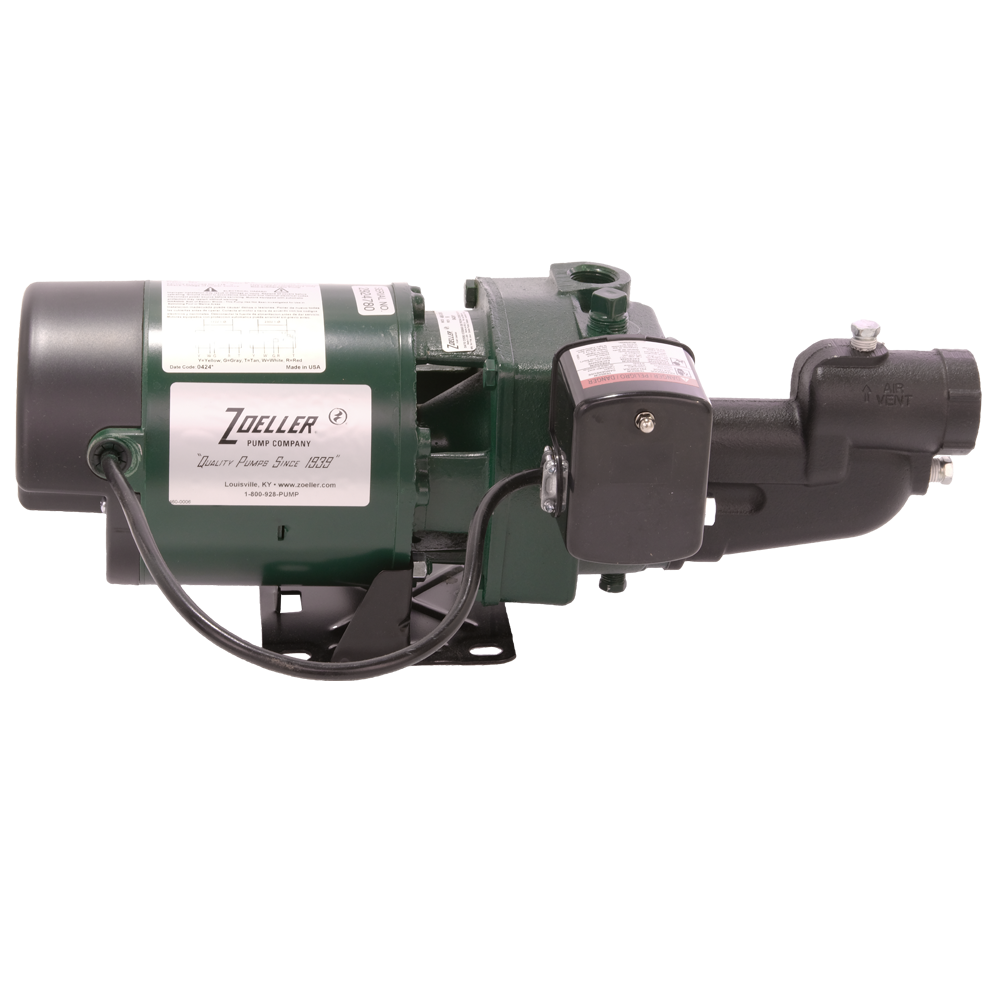

NE461 Cast Iron Shallow Well Jet Pump

  • For shallow wells with suction lifts from 0′ to 25′ (0 – 8 m)
  • Designed for years of trouble-free operation and simple, swift, on-site servicing
  • Can be field wired for 115 V or 230 V
  • View More Details

Our 460 Shallow Well Jet Pump Series offers a reliable and efficient solution for shallow well needs, complete with a pressure switch for optimal performance.

Product SKU:

461-0006

UPC:

053514218683
1
year limited
warranty
Categories:
Find Nearest Contractor
Find Nearest Distributor
Find Nearest Service Center
1
year limited
warranty

Have a question? Give us a call!

800-928-7867
NE461 Cast Iron Shallow Well Jet Pump

Our 460 Shallow Well Jet Pump Series offers a reliable and efficient solution for shallow well needs, complete with a pressure switch for optimal performance.

Product Details

The 460 Shallow Well Jet Pump Series, delivers reliable performance with suction lifts ranging from 0′ to 25′ (0 – 8 m). Featuring capacities reaching up to 1200 GPH (4,542 LPH) and pressures up to 50 PSI, it is an excellent water pump for various residential and small-scale irrigation applications.

Backed by a 1-year limited warranty, the 460 Shallow Well Jet Pump Series offers a dependable and efficient solution for your shallow well water needs.

Features and Benefits
  • Sturdy cast iron construction
  • Includes removable ejector for easy serviceability
  • Includes pressure switch
  • Thermal overload protects against overheating
  • Special priming port and large volume case makes priming easier
  • Continuous duty uni-frame 56 frame motor (NEMA J adaptable)
  • Capacitor start motor provides maximum starting torque
  • Stainless steel motor shaft sleeve for corrosion resistance
  • Easy access drain plug for winterizing
  • Carbon/silicon mechanical shaft seal
Product Specifications

Shipping Weight:

43 lbs

Shipping Dimensions:

Height 10 3/5 in   x   Width 15 3/10 in   x   Length 19 1/2 in.

Voltage:

115/230

Horsepower:

3/4

Hertz:

60

AMP:

13/6.5
