Pivot Control Panel

Product SKU:

N/A

UPC:

053514445867
5
year limited
warranty
Categories: Tags: , , , ,
  • Available in simplex and duplex configurations to support a wide range of pump system requirements
  • Compact NEMA 4X enclosure with touch‑safe interface and clear LED system status indicators
  • Factory‑configured standard features reduce complexity and minimize the number of panels required to stock
  • View More Details

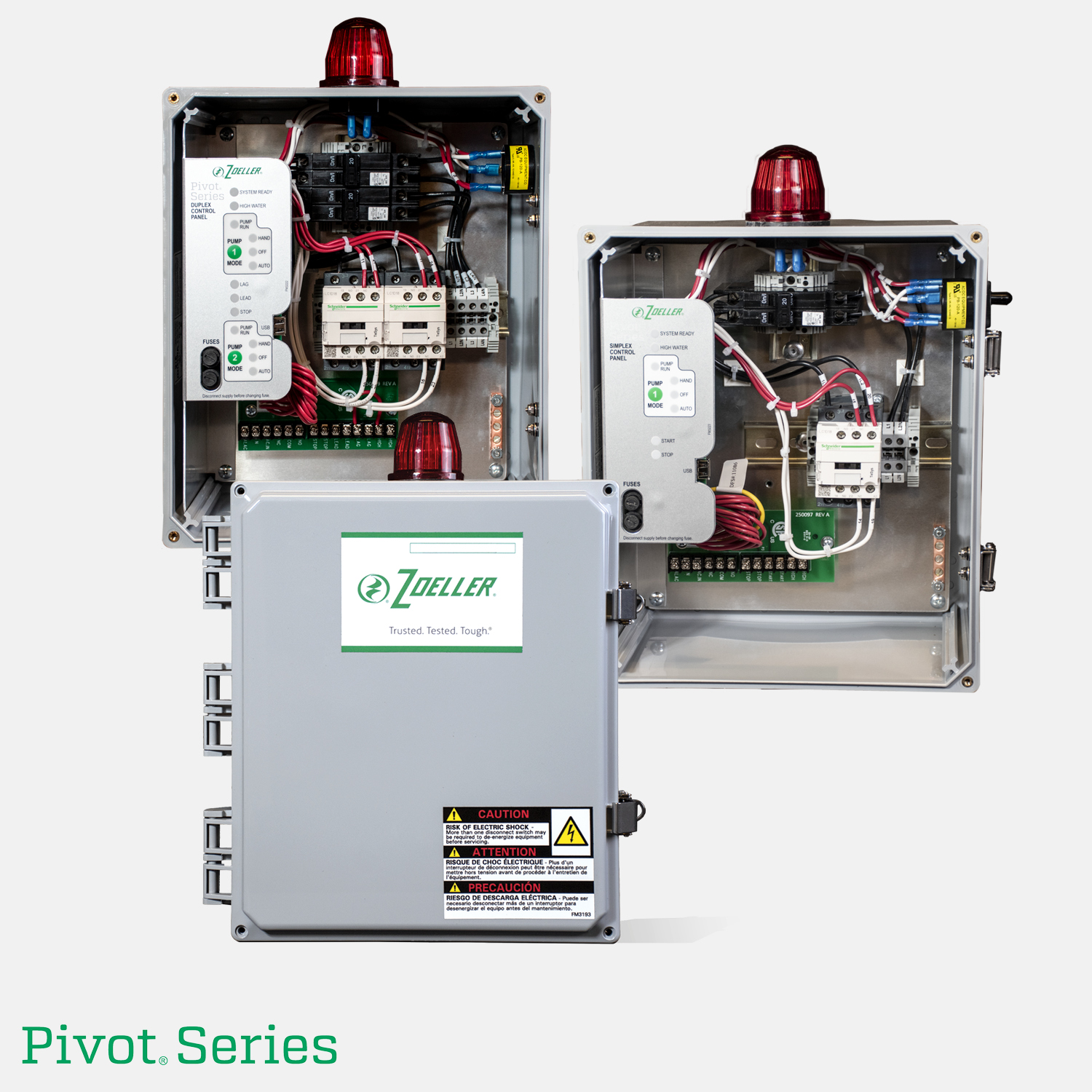

The Zoeller® Pivot® Control Panel is a simplex and duplex control solution that delivers advanced standard features in a compact, easy‑to‑use design. Featuring smart float logic, Smart HOA protection, and a NEMA 4X enclosure, the Pivot® panel provides reliable pump control while simplifying installation and long‑term service.

Find Nearest Contractor
Find Nearest Distributor
Find Nearest Service Center
5
year limited
warranty

Have a question? Give us a call!

800-928-7867
Pivot Control Panel

The Zoeller® Pivot® Control Panel is a simplex and duplex control solution that delivers advanced standard features in a compact, easy‑to‑use design. Featuring smart float logic, Smart HOA protection, and a NEMA 4X enclosure, the Pivot® panel provides reliable pump control while simplifying installation and long‑term service.

Product Details

The Zoeller® Pivot® Control Panel is engineered to provide dependable pump control for simplex and duplex wastewater systems with a focus on reliability, safety, and simplicity. Designed around Zoeller’s “more standard features, fewer models to stock” philosophy, the Pivot® panel includes advanced functionality typically found only on higher‑end control panels.

At the core of the Pivot® panel is smart float logic, which prioritizes pump operation to help keep the system running even when abnormal float behavior is detected. This approach reduces nuisance shutdowns and helps maintain system operation during unexpected conditions. In duplex configurations, the panel supports pump alternation, helping balance runtime between pumps and extend overall service life.

The Smart HOA (Hand‑Off‑Auto) selector further enhances protection by preventing accidental operation errors and reminding users to return the panel to automatic mode. The panel’s touch‑safe user interface and LED status indicators provide clear visibility into system operation, including pump run status, float conditions, and system readiness.

Housed in a NEMA 4X enclosure, the Pivot® Control Panel is suitable for indoor or outdoor installations and offers protection against corrosion and environmental exposure. Available in simplex and duplex configurations, the base Pivot® panel delivers a balanced combination of advanced protection, intuitive operation, and compact design—backed by Zoeller’s 5‑year limited warranty.

Features and Benefits
  • Designed for single‑pump (simplex) and dual‑pump (duplex) applications using relay‑based control logic
  • Automatically prioritizes pump operation to help keep the system running, even if a float switch fault is detected
  • Prevents accidental pump damage by reminding operators to return the selector switch to Auto mode
  • Duplex models provide alternating pump operation to balance runtime and extend pump life
  • Provides visual system status through LED indicators such as System Ready, Pump Run, Float Status, and Float Faults
  • Designed to reduce exposure to live components while allowing easy interaction and troubleshooting
  • Rated for indoor or outdoor installation, offering protection against corrosion and environmental exposure
  • Maintains a space‑efficient design while still providing adequate room for field wiring
  • Backed by Zoeller’s 5‑year limited warranty, reflecting confidence in long‑term reliability
Product Specifications

Shipping Weight:

9 lbs

Shipping Dimensions:

Height 10 in   x   Width 6 in   x   Length 12 in.

Panel Type:

Simplex, Duplex

Enclosure:

NEMA 4X

Voltage:

115, 115/200/230

Phase:

1

Full Load Amp:

0 – 7, 0 – 20, 7 – 15, 15 – 20, 20 – 30
