Pivot RL Control Panel

Product SKU:

N/A

UPC:

053514540654
3
year limited
warranty
Categories:
  • Simplex relay‑logic control panel for single‑pump wastewater applications
  • Provides essential pump control features without LCD screens or connectivity requirements
  • Compact NEMA 4X enclosure designed for reliable indoor or outdoor installation
  • View More Details

The Zoeller® Pivot® RL Control Panel is a simplex, relay‑logic control solution designed for single‑pump wastewater systems. Offering essential pump control in a compact NEMA 4X enclosure, the Pivot® RL provides reliable operation without the need for advanced interfaces or connectivity

Find Nearest Contractor
Find Nearest Distributor
Find Nearest Service Center
3
year limited
warranty

Have a question? Give us a call!

800-928-7867
Pivot RL Control Panel
Pivot RL Control Panel
Pivot RL Control Panel

The Zoeller® Pivot® RL Control Panel is a simplex, relay‑logic control solution designed for single‑pump wastewater systems. Offering essential pump control in a compact NEMA 4X enclosure, the Pivot® RL provides reliable operation without the need for advanced interfaces or connectivity

Product Details

The Zoeller® Pivot® RL Control Panel is engineered for wastewater applications that require dependable simplex pump control using traditional relay logic. As the entry‑level option within the Pivot® family, the Pivot® RL focuses on delivering essential control functionality without the added complexity of LCD displays, programmable interfaces, or remote connectivity.

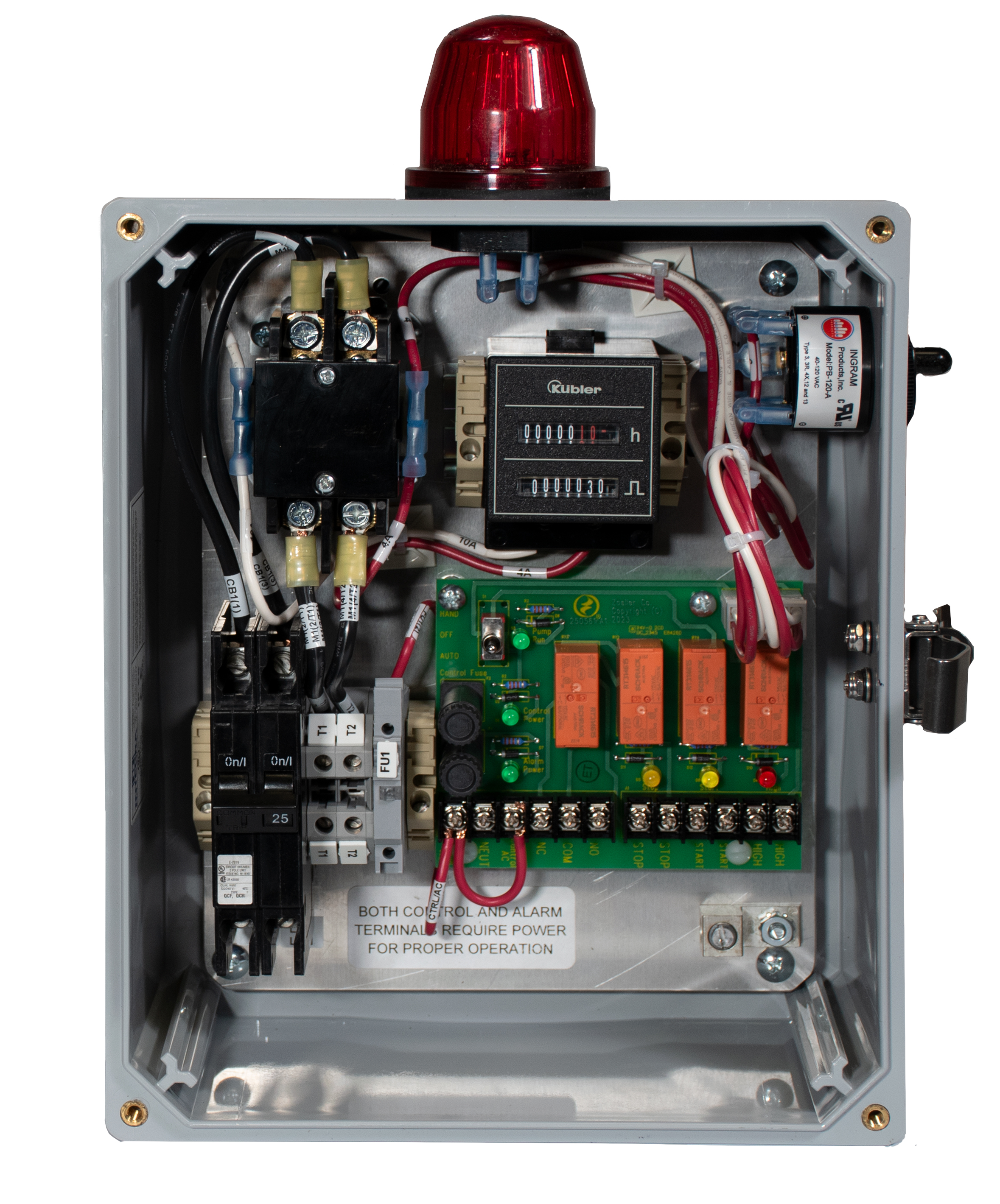

Designed for single‑pump systems, the Pivot® RL uses proven relay‑based control to manage pump operation in response to liquid‑level inputs from control switches. Visual LED indicators provide at‑a‑glance system status, allowing operators and service personnel to quickly verify basic operation.

The panel’s touch‑safe design helps reduce exposure to live components during inspection or service, while the NEMA 4X enclosure protects internal components from corrosion and environmental exposure. This makes the Pivot® RL suitable for both indoor and outdoor installations in sewage, effluent, and dewatering applications. Reversing Pivot RL is only applicable for specified reversing grinder pumps like the Model 840.

For projects that prioritize simplicity, reliability, and ease of installation over advanced diagnostics or connectivity, the Zoeller® Pivot® RL Control Panel offers a practical and dependable solution backed by Zoeller’s system‑level control expertise.

Features and Benefits
  • Designed specifically for single‑pump (simplex) applications using traditional relay‑based logic
  • Uses proven relay logic for dependable pump control without firmware or advanced configuration requirements
  • Offers simple, easy‑to‑understand operation for applications that do not require advanced diagnostics or programming
  • Operates without an LCD display or Z Control® connectivity, reducing complexity and setup requirements
  • Includes visual indicators for key system conditions such as pump run and system status
  • Designed to reduce exposure to live components while allowing safe interaction during service
  • Housed in a corrosion‑resistant NEMA 4X enclosure, suitable for indoor or outdoor wastewater installations
  • Space‑efficient design allows for installation in tight locations while maintaining service access
  • 3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Product Specifications

Shipping Weight:

9 lbs

Shipping Dimensions:

Height 6 in   x   Width 10 in   x   Length 12 in.

Panel Type:

Simplex

Enclosure:

NEMA 4X

Voltage:

115/200/230, 200-230

Phase:

1

Full Load Amp:

0 – 20, 15 – 20

Cycle Count/Elapsed Time:

Yes, No

Breaker Rating:

20, 30

Reversing:

No, Yes
