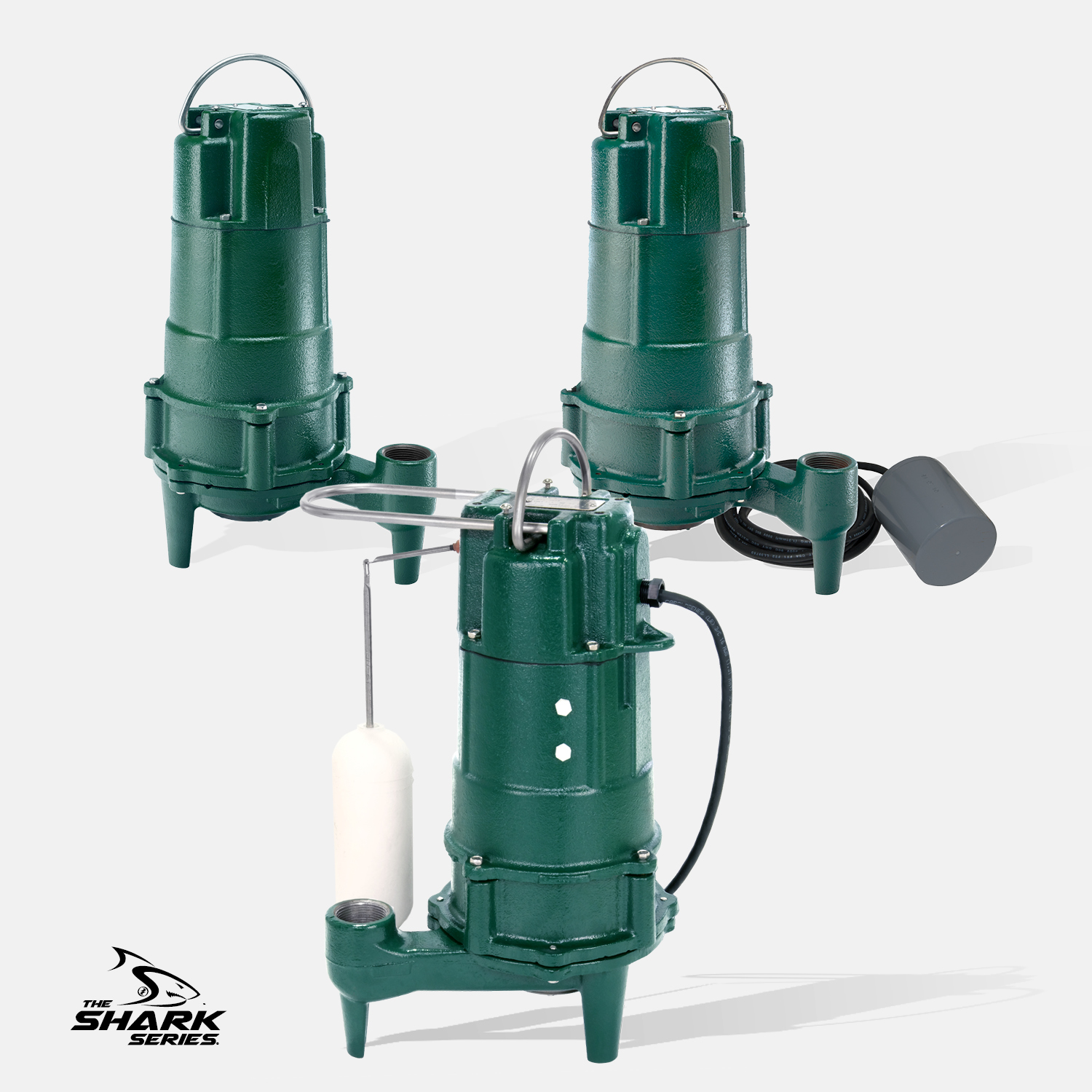

Model 803 Grinder Pump

Product Details

The Zoeller Model 803 Grinder Pump family is purpose‑built to solve residential sewage challenges where standard sewage pumps are no longer enough. Designed for pressure sewer systems and difficult wastewater applications, these fractional‑horsepower grinder pumps are constructed with all cast‑iron housings to deliver exceptional durability, superior heat dissipation, and long‑term reliability in harsh environments. With ability to reach 35 feet of head and 35 GPM.

At the heart of the 803 family is Zoeller’s Tri‑Slice® grinder system, featuring a hardened stainless‑steel cutter and disc that use a scissor‑style cutting action to efficiently shred household sewage and common “flushable” materials. This design minimizes binding and roping, reducing the risk of clogs while producing a fine slurry that moves easily through small‑diameter pressure sewer piping. The result is dependable wastewater transfer where gravity systems and standard sewage pumps fall short.

The Model 803 family is engineered specifically for residential use, offering 115V and 200–230V single‑phase options without the added cost and complexity of commercial grinder systems. Available in both automatic and nonautomatic configurations, these pumps provide installation flexibility for new construction, retrofits, and packaged basin systems. Their performance curves are intentionally designed to deliver higher flow at moderate head, making them an excellent replacement for traditional sewage pumps in pressure‑based applications.

Each pump features an oil‑filled, thermally protected motor and a corrosion‑resistant epoxy finish to ensure cool operation and extended service life. Like all Zoeller submersible pumps, every Model 803 grinder pump is 100% factory tested remembered to its published performance curve before shipment, ensuring verified performance right out of the box. Backed by a 3‑year limited warranty, the Model 803 Grinder Pump family delivers the confidence, reliability, and toughness professionals expect from Zoeller—Trusted. Tested. Tough.®

Features and Benefits

• Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
• Available in both automatic and nonautomatic versions. For a nonautomatic pump, external float controls or a control panel are required
• Proven Tri-Slice® cutter technology: Three independent cutting channels provide over 250,000 cuts per minute
• Automatic units include a float guard to protect the switching system from debris interference; nonautomatic versions do not include this guard
• Automatic models use Zoeller’s proven snap‑action float system; nonautomatic versions require piggyback floats or control‑panel integration
• Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
• Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion over the life of the pump
• 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
• Comes with a 3-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
