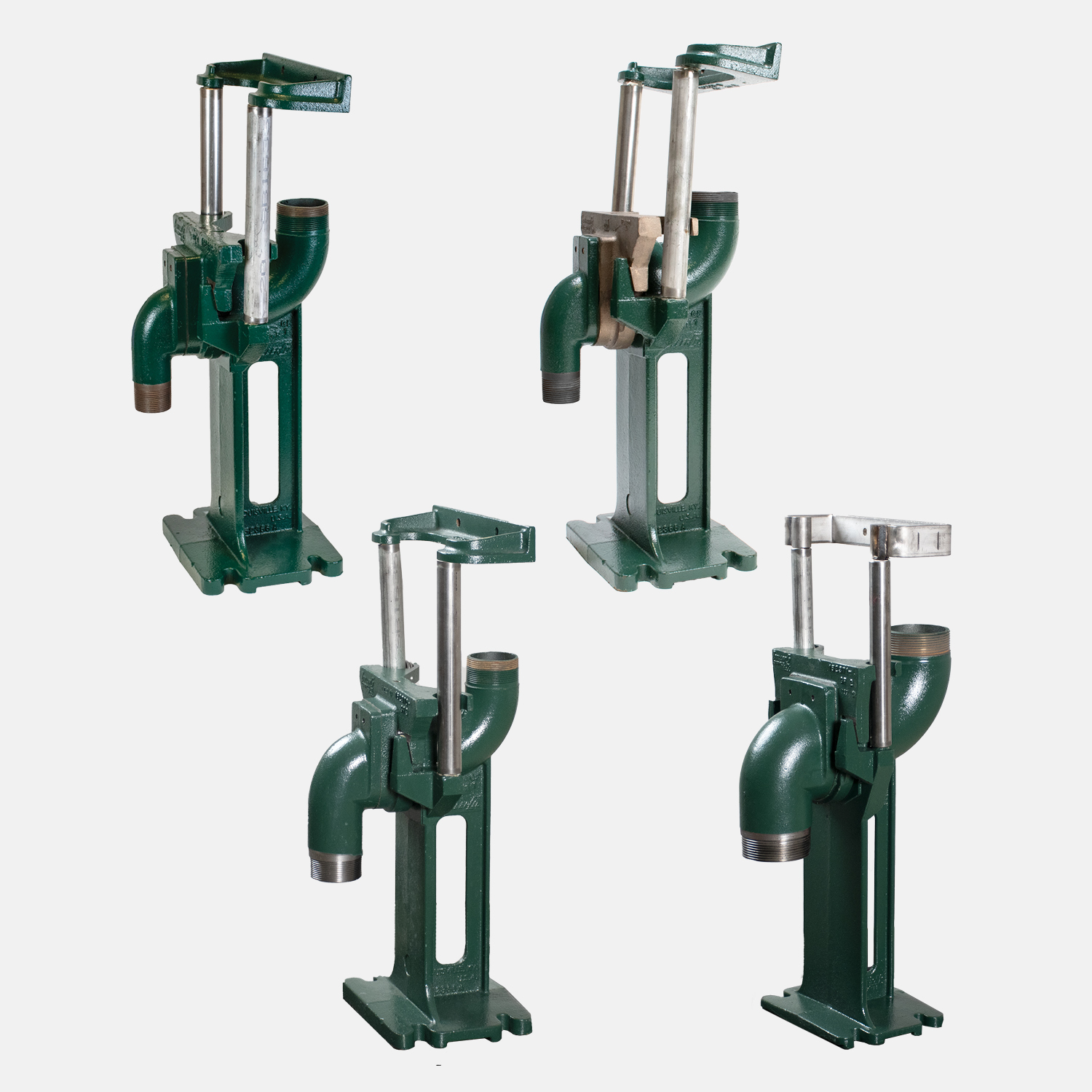

Z-Rail® Disconnect System

Product SKU:

N/A

UPC:

053514346409
1
year limited
warranty
Categories: Tags: , ,
  • Guide rail system designed for safe pump installation and removal without entering the basin
  • Provides automatic discharge connection when the pump is lowered into place
  • Available in multiple configurations to support sewage, effluent, and grinder pump applications
  • View More Details

The Zoeller® Z‑Rail® System is a guide rail and quick‑disconnect solution that simplifies pump installation, removal, and service in sewage, effluent, and grinder pump applications. Designed to automatically align and seal the pump to the discharge connection, the Z‑Rail® System improves safety, reduces service time, and supports reliable system performance.

Find Nearest Contractor
Find Nearest Distributor
Find Nearest Service Center
1
year limited
warranty

Have a question? Give us a call!

800-928-7867
Z-Rail® Disconnect System

The Zoeller® Z‑Rail® System is a guide rail and quick‑disconnect solution that simplifies pump installation, removal, and service in sewage, effluent, and grinder pump applications. Designed to automatically align and seal the pump to the discharge connection, the Z‑Rail® System improves safety, reduces service time, and supports reliable system performance.

Product Details

The Zoeller® Z‑Rail® System is engineered to streamline pump installation and service in wastewater collection systems by providing a guided, automatic connection between the pump and discharge piping. Designed for use with sewage, effluent, and grinder pumps, the Z‑Rail® System allows pumps to be installed or removed without cutting piping or entering the basin.

Using dual guide rails (sold separately), the system ensures that the pump remains properly aligned as it is lowered into place. Once seated, the pump automatically connects to the discharge fitting, creating a secure seal that supports consistent operation. For maintenance or replacement, the pump can be lifted out using a stainless‑steel lifting cable (sold separately), minimizing downtime and improving service safety.

The Z‑Rail® System is commonly used in Zoeller preassembled package systems and lift station applications, where safe access and long‑term serviceability are critical. Available in multiple configurations to support different discharge orientations and pump types, the system integrates seamlessly with Zoeller pumps and basins.

As part of Zoeller’s complete system solution approach, the Z‑Rail® System helps reduce installation complexity, improve technician safety, and support reliable wastewater system performance over the life of the installation.

Features and Benefits
  • Dual guide rails allow the pump to be lowered smoothly into the basin and guided directly to the discharge connection
  • The system aligns the pump with the discharge fitting, creating a secure connection without manual adjustment
  • Allows pumps to be removed for service using a lifting cable, eliminating the need to disconnect piping or enter the basin
  • Reduces confined‑space entry by enabling pump installation and removal from above the basin
  • Dual‑rail design helps prevent pump rotation or misalignment during operation and removal
  • Manufactured using corrosion‑resistant materials suitable for wastewater environments
  • Available to accommodate common vertical and horizontal discharge applications
  • Commonly integrated into Zoeller preassembled sewage and grinder package systems
  • Backed by Zoeller’s system‑level approach to pump installation, serviceability, and long‑term reliability
Product Specifications

Shipping Weight:

N/A

Shipping Dimensions:

Height 19 in   x   Width 9 1/4 in   x   Length 10 1/2 in.

Discharge:

1-1/2" Vertical, 1-1/4" Horizontal, 1-1/4" Vertical, 2" Vertical, 3" horizontal ANSI Flange, 3" Vertical, 4" horizontal ANSI flange

Rail Type:

Standard, Explosion Proof

Material:

Upper Bracket – Ductile Iron, Upper Bracket – Stainless Steel
