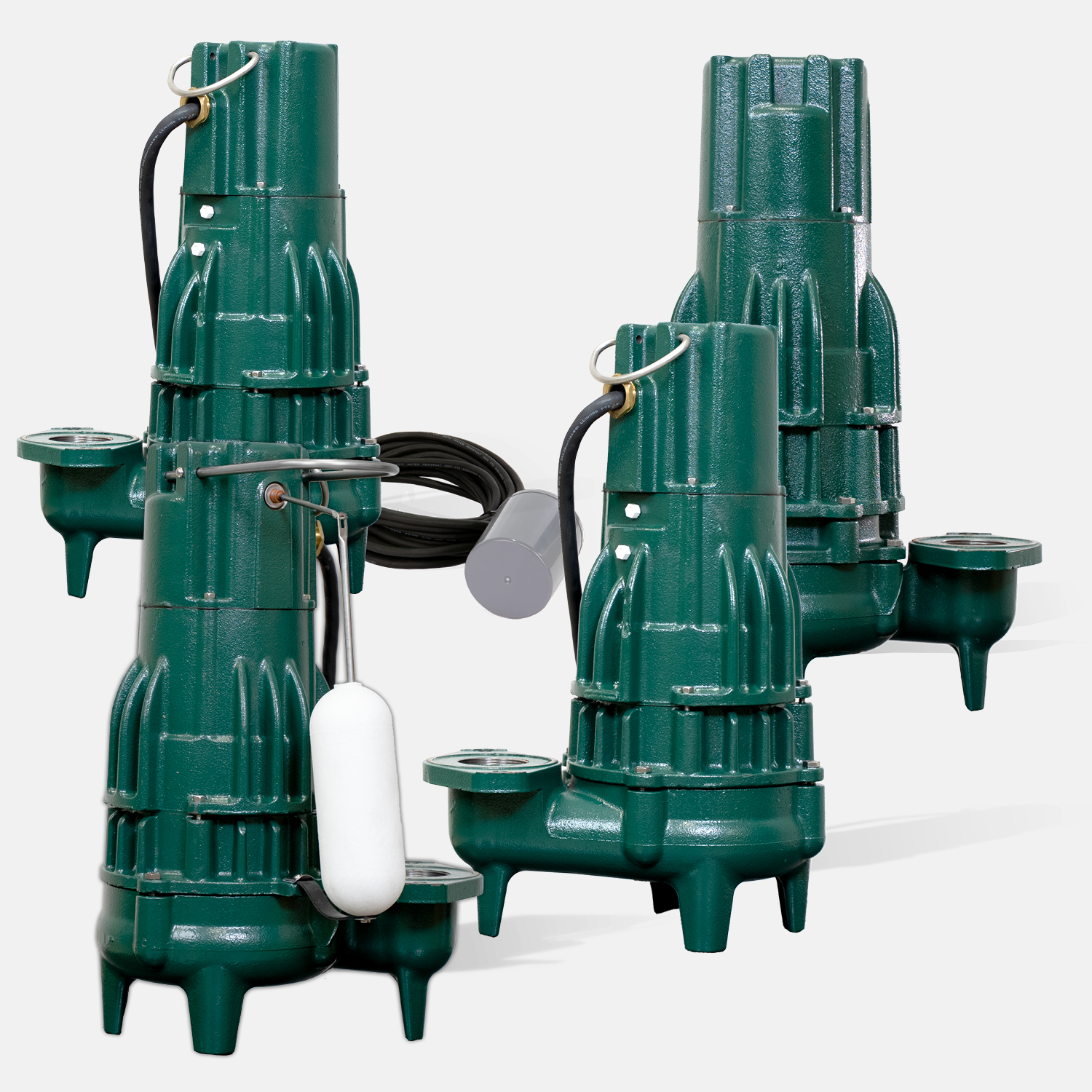

Model 294 Sewage Pump

Product SKU:

N/A

UPC:

053514019273
1
year limited
warranty
Categories: Tags: , , , , , , , , , , , , , , , ,
  • Available in multiple voltages this sewage pump is designed for use in sewage lift stations and storm water removal
  • 1-1/2 HP, oil-filled motor and cast iron motor housing for optimal heat dissipation
  • 100% Factory Tested
  • View More Details

The Zoeller Model 294 is a powerful 1-1/2 HP high‑head sewage ejector pump designed for commercial lift stations, multi‑unit wastewater systems, and high‑pressure sewage applications. Built with a cast‑iron vortex impeller that passes 2″ spherical solids and an oil‑filled motor for superior cooling, the 294 delivers up to 62 feet of head and 196 GPM. Available in automatic or nonautomatic operation with optional double‑seal protection, every unit is 100% factory‑tested for long‑term reliability.

Find Nearest Contractor
Find Nearest Distributor
Find Nearest Service Center
1
year limited
warranty

Have a question? Give us a call!

800-928-7867
Model 294 Sewage Pump

The Zoeller Model 294 is a powerful 1-1/2 HP high‑head sewage ejector pump designed for commercial lift stations, multi‑unit wastewater systems, and high‑pressure sewage applications. Built with a cast‑iron vortex impeller that passes 2″ spherical solids and an oil‑filled motor for superior cooling, the 294 delivers up to 62 feet of head and 196 GPM. Available in automatic or nonautomatic operation with optional double‑seal protection, every unit is 100% factory‑tested for long‑term reliability.

Product Details

The Model 294 sewage ejector pump is a heavy‑duty, high‑head wastewater solution engineered for the demands of commercial, industrial, and large multi‑unit residential applications. As part of Zoeller’s High Head Waste‑Mate® series, the 294 delivers robust hydraulic performance and exceptional solids‑handling capability through its rugged cast‑iron construction and oil‑filled motor design.

The 1-1/2 HP PSC motor, protected by Class F insulation, maintains stable operating temperatures even under prolonged load, making it ideal for deeper lift stations or long discharge lines. Its cast‑iron vortex impeller passes 2‑inch spherical solids, ensuring reliable pumping in environments with wipes, rags, and high solids concentration. With a maximum head of 62 feet and flow capacity up to 196 GPM, the Model 294 provides the high‑pressure output needed in demanding sewage systems.

The 294 is available in automatic and nonautomatic versions. Automatic models include Zoeller’s dependable snap‑action float switch, protected by a float guard to ensure consistent activation in debris‑rich basins. Nonautomatic units pair easily with a piggyback float for automatic cycling or integrate into engineered control‑panel systems for precise level management in simplex or duplex lift‑station configurations.

To withstand the harshest wastewater conditions, the Model 294 also offers a double‑seal (4294) option, featuring two mechanical seals and a stainless‑steel motor shaft for enhanced protection against abrasion and infiltration. The cast‑iron housings, powder‑coated finish, stainless‑steel hardware, and carbon/ceramic mechanical seals further reinforce the pump’s long‑term durability.

Every Model 294 undergoes complete factory submersion testing, ensuring hydraulic performance meets published curves from day one. Backed by Zoeller’s Waste‑Mate® warranty program and decades of wastewater engineering excellence, the Model 294 is the ideal choice for high‑head sewage ejector applications requiring maximum reliability.

Features and Benefits
  • Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
  • Available in automatic and nonautomatic versions. A nonautomatic Model 294 becomes fully automatic when paired with a piggyback float switch; without piggyback, a control panel or external float controls are required
  • Corrosion resistant cast iron vortex impeller to allow free passage of 2" spherical solids which prevents clogging and increases reliability
  • Automatic configurations include a protected float mechanism for improved reliability in harsh, debris‑laden pits; nonautomatic versions omit the float guard
  • Automatic models include Zoeller’s proven snap‑action float switch or a nonautomatic version can be made into an automatic with a piggyback float switch. Nonautomatic versions rely control‑panel integration
  • Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
  • Stainless steel screws, handle, and hardware to prevent rust and corrosion
  • 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
  • Comes with a 1-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
Product Specifications

Shipping Weight:

N/A

Shipping Dimensions:

Height 21 1/4 in   x   Width 11 3/4 in   x   Length 14 3/4 in.

Horsepower:

1-1/2

Voltage:

200-208, 230, 460

Phase:

1, 3

Shaft Seal:

Single, Double

Operation:

Automatic, Nonautomatic

Switch:

Snap-Action, Piggyback, None

AMP:

4.8 – 17.8

Hertz:

60

RPM:

3450

Discharge:

2" NPT

Solids Handling:

2” (50 mm) spherical solids

On/Off Points:

Variable level- customer set

Impeller Material:

Cast Iron

Impeller Type:

Vortex

Cord Length:

20' (6 m), 25' (7.62 m), 35' (10.67 m), 50' (15.24 m)
